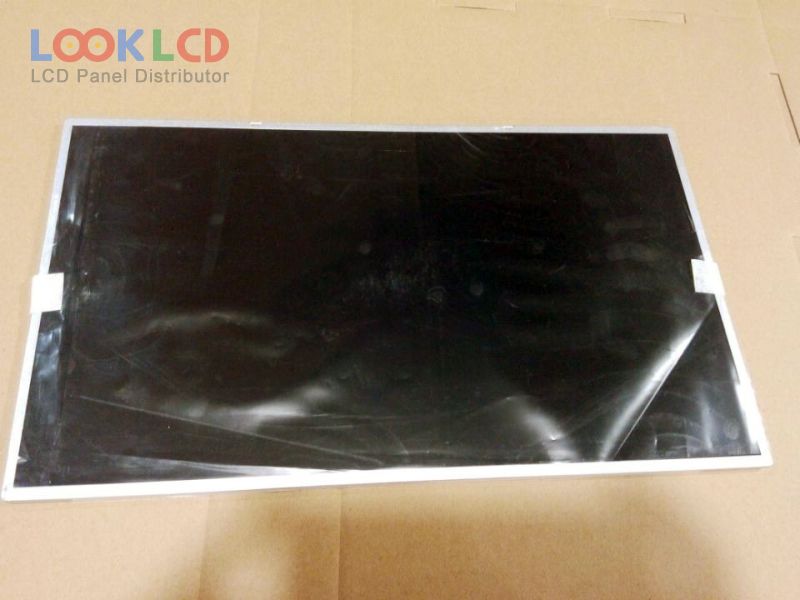

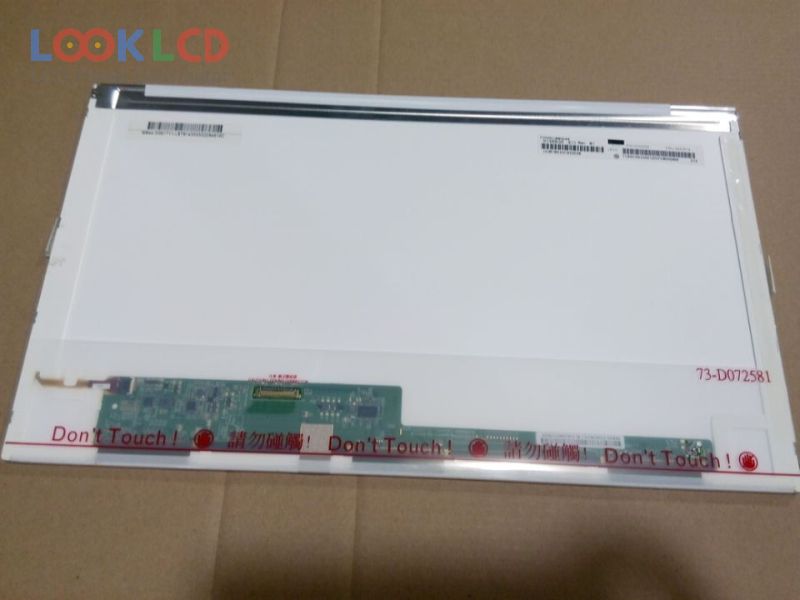

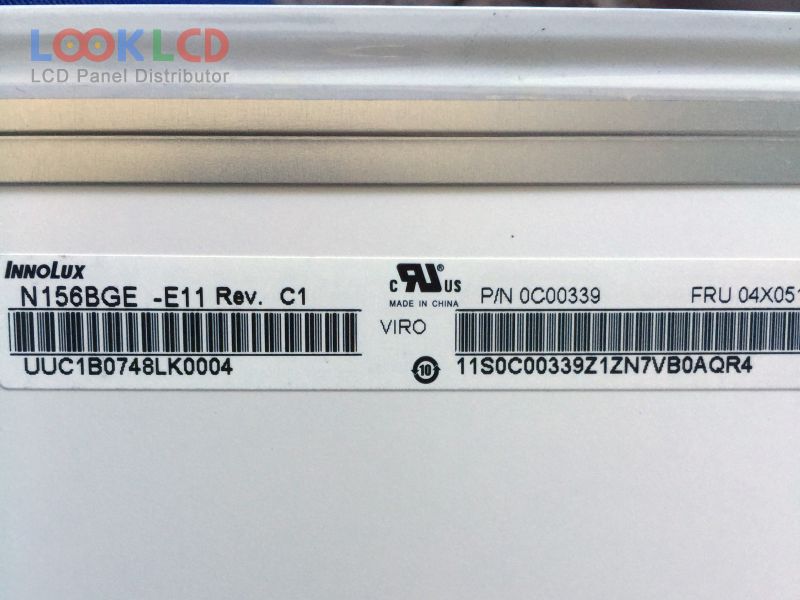

| Part Number | N156BGE-E11 |
| Mark | Innolux |
| Gréisst | 15.6 |
| Applikatioun | NBPC |
| Opléisung | 1366×768 |
| Zesummesetzung | LCM |
| Hellegkeet | 200 |
| CR | 500:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | eDP |
| Panel Mark | INNOLUX |
| Panel Modell | N156BGE-E11 4 Compatible model |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 15.6 inch |
| Resolutioun | 1366(RGB)×768 , WXGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 344.232×193.536 mm |
| skizzéieren | 359.3×209.5×5.5 mm |
| Form Stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Uewerfläch | Antiglare, Hard coating (3H) |
| Hellegkeet | 200 cd/m² (Typ.) |
| Kontrast Verhältnis | 500:1 (Typ.) |
| weisen Faarwen | 262K (6-bit), CIE193160% |
| Äntwert Zäit | 3/8 (Typ.)(Tr/Td) |
| Vue Wénkel | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | WLEDEmbedded (LED Driver) |
| Signal Interface | eDP (1 Lane), 30 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | NBPC |
| N156B3-L02 | Innolux | 15.6 | 1366×768 |
| N156B3-L0A | Innolux | 15.6 | 1366×768 |
| N156B6-L01 | Innolux | 15.6 | 1366×768 |
| N156B6-L0B | Innolux | 15.6 | 1366×768 |
| N156B6-L3D | Innolux | 15.6 | 1366×768 |
| N156BGE-E11 | Innolux | 15.6 | 1366×768 |
| N156BGE-E21 | Innolux | 15.6 | 1366×768 |
| N156BGE-L31 | Innolux | 15.6 | 1366×768 |
| N156BGE-L41 | Innolux | 15.6 | 1366×768 |
| N156BGK-E33 | Innolux | 15.6 | 1366×768 |
| B140XW02 V2 | AUO | 14.0 | 1366×768 |
| B154SW01 V9 | AUO | 15.4 | 1680×1050 |
| B156XW02 V0 | AUO | 15.6 | 1366×768 |
| CLAA154WA01 | CPT | 15.4 | 1280×800 |
| LP140WH1-TLD1 | LG Display | 14.0 | 1366×768 |
| LP141WX1-TLA1 | LG Display | 14.1 | 1280×800 |
| LP154W02-TL06 | LG Display | 15.4 | 1680×1050 |
| LP171WX2-A4K1 | LG Display | 17.1 | 1440×900 |
| LTM08C356F | TOSHIBA | 8.4 | 800×600 |
| N150X3-L09 | Innolux | 15.0 | 1024×768 |
