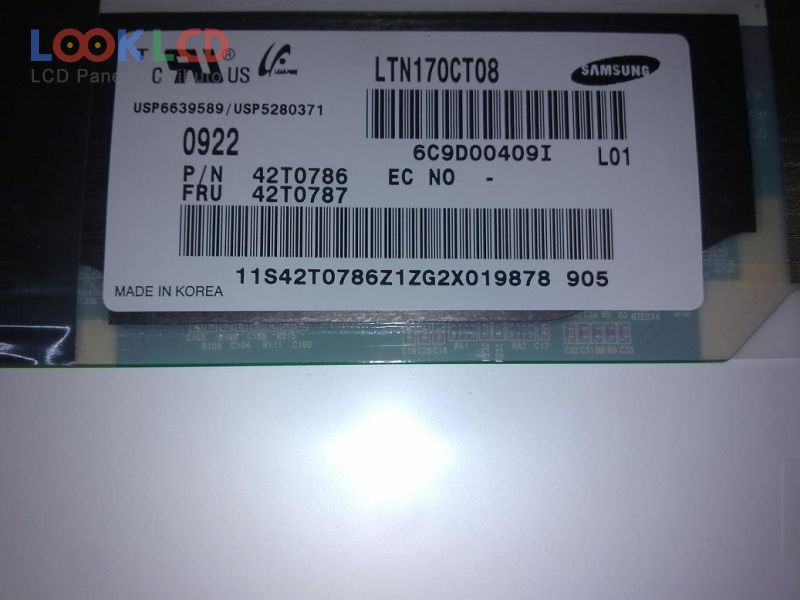

| Part Number | LTN170CT08-L01 |
| Mark | Samsung |
| Gréisst | 17.0 |
| Applikatioun | NBPC |
| Opléisung | 1920×1200 |
| Zesummesetzung | LCM |
| Hellegkeet | 280 |
| CR | 600:1 |
| Faarwen | 16.7M |
| Géigeliicht | RGB LED |
| Interface | LVDS |
| Panel Mark | SAMSUNG |
| Panel Modell | LTN170CT08-L01 1 Compatible model |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 17.0 inch |
| Resolutioun | 1920(RGB)×1200 , WUXGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 367.2×229.5 mm |
| skizzéieren | 382.2×247.5×7 mm |
| Form Stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Uewerfläch | Antiglare (Haze 40%), Hard coating (3H) |
| Hellegkeet | 280 cd/m² (Typ.) |
| Kontrast Verhältnis | 600:1 (Typ.) |
| weisen Faarwen | 16.7M (8-bit), CIE1931110% |
| Äntwert Zäit | 16 (Typ.)(Tr+Td) |
| Vue Wénkel | 70/70/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | RGB LEDEmbedded (LED Driver) |
| Signal Interface | LVDS (2 ch, 8-bit), 40 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | NBPC |
