Innolux MT190AW01 V.C Dateblat, Spezifizéierung, Aktien, Applikatioun www.looklcd-lu.com
LookLCD LookLCD

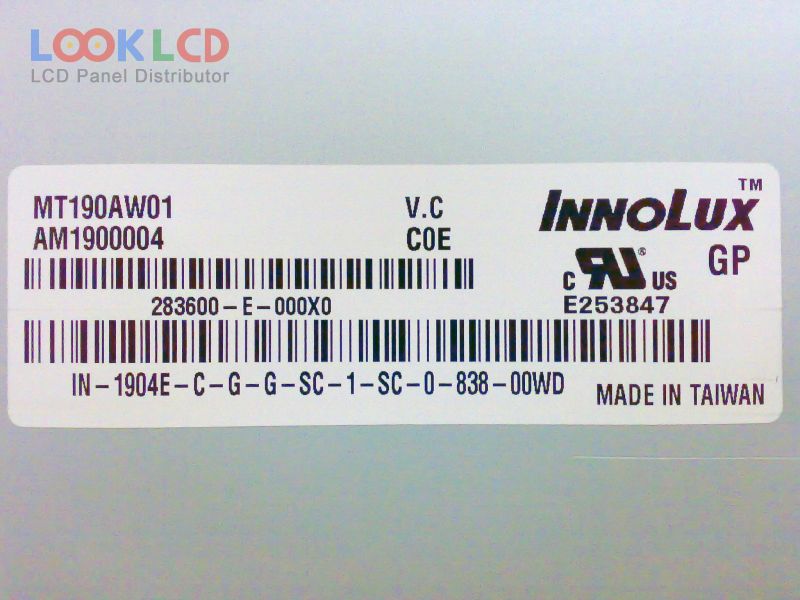

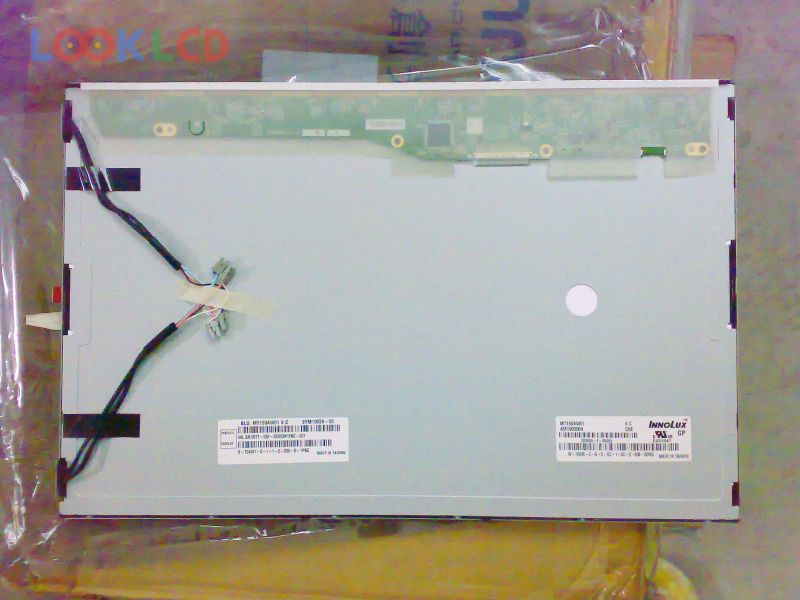

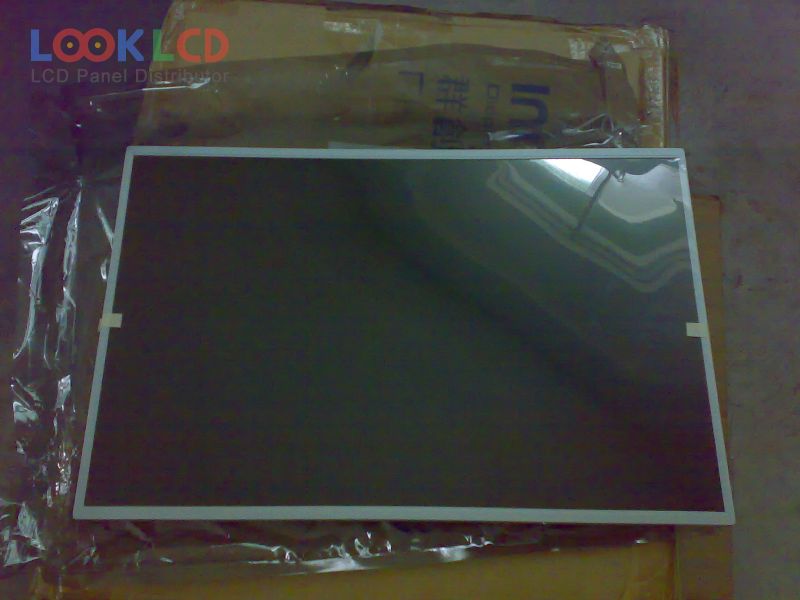

MT190AW01 V.C

MT190AW01 V.C
MT190AW01 V.C
MT190AW01 V.C
MT190AW01 V.C thumb MT190AW01 V.C thumb MT190AW01 V.C thumb
Mark
Innolux
Gréisst
19.0
Applikatioun
DMPC
Opléisung
1440×900
Zesummesetzung
LCM
Hellegkeet
250
CR
1000:1
Faarwen
16.2M
Backlight
CCFL
Interface
LVDS
In Stock
7798
Spezifikatioune

Part Number MT190AW01 V.C
MarkInnolux
Gréisst19.0
ApplikatiounDMPC
Opléisung1440×900
ZesummesetzungLCM
Hellegkeet250
CR1000:1
Faarwen16.2M
GéigeliichtCCFL
InterfaceLVDS
Panel MarkINNOLUX
Panel ModellMT190AW01 V.C
Panel Typ a-Si TFT-LCD , LCM
Panel Gréisst19.0 inch
Resolutioun1440(RGB)×900 , WXGA+
Display ModusTN, Normally White, Transmissive
aktiv Beräich410.4×256.5 mm
skizzéieren427.2×277.4×16.5 mm
UewerflächAntiglare (Haze 25%), Hard coating (3H)
Hellegkeet250 cd/m² (Typ.)
Kontrast Verhältnis1000:1 (Typ.)
weisen Faarwen16.2M (6-bit + FRC)
Äntwert Zäit1.5/3.5 (Typ.)(Tr/Td)
Vue Wénkel80/80/80/80 (Typ.)(CR≥10)(L/R/U/D)
Frequenz60Hz
Lampe Typ4 pcsCCFLWithout Driver
Signal InterfaceLVDS (2 ch, 8-bit), 30 pins
Input Volt5.0V (Typ.)
ApplikatiounDMPC
