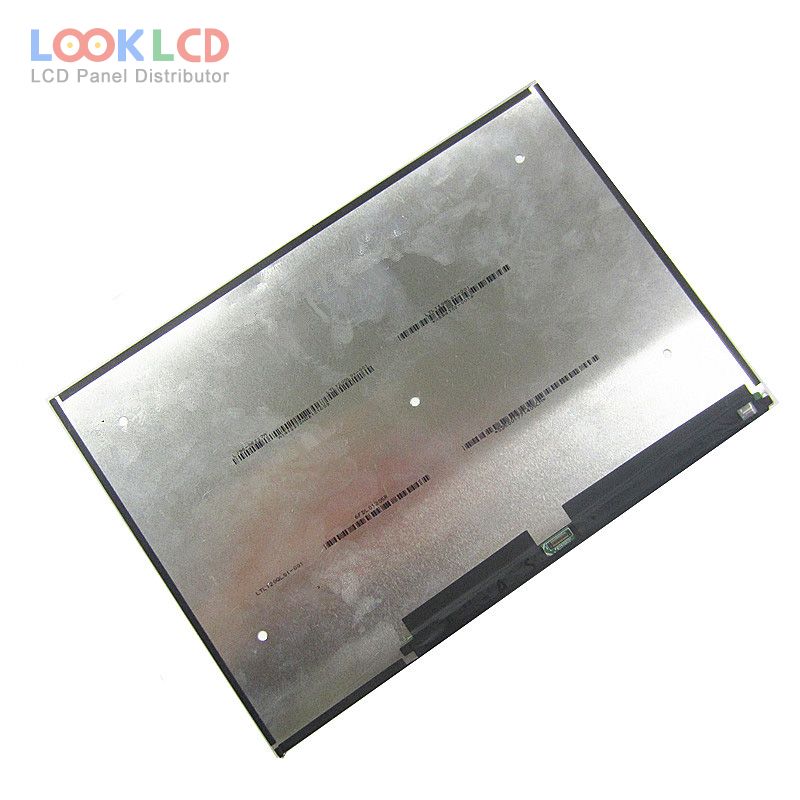

| Part Number | LTL120QL01-001 |
| Mark | Samsung |
| Gréisst | 12.0 |
| Applikatioun | PAD |
| Opléisung | 2160×1440 |
| Zesummesetzung | LCM |
| Hellegkeet | 400 |
| CR | 800:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | eDP |
| Panel Mark | SAMSUNG |
| Panel Modell | LTL120QL01-001 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 12.0 inch |
| Resolutioun | 2160(RGB)×1440 |
| Display Modus | PLS, Normally Black, Transmissive |
| aktiv Beräich | 254.016×169.344 mm |
| skizzéieren | 263.42×182.26×4.29 mm |
| Uewerfläch | Glare (Haze 0%), Hard coating (2H) |
| Hellegkeet | 400 cd/m² (Typ.) |
| Kontrast Verhältnis | 800:1 (Typ.) |
| weisen Faarwen | 16.7M (8-bit), CIE193172% |
| Äntwert Zäit | 25/35 (Max.)(Tr/Td) |
| Vue Wénkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 9S6PWLEDEmbedded (LED Driver) |
| Signal Interface | eDP (4 Lanes), 40 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | PAD |
