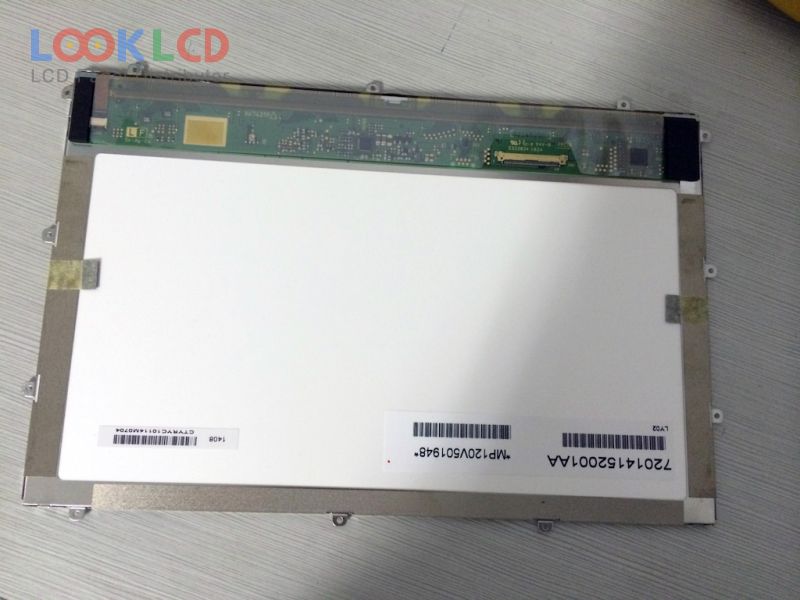

| Part Number | LQ101K1LY02 |
| Mark | SHARP |
| Gréisst | 10.1 |
| Applikatioun | PAD |
| Opléisung | 1280×800 |
| Zesummesetzung | LCM |
| Hellegkeet | 400 |
| CR | 800:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | LVDS |
| Panel Mark | SHARP |
| Panel Modell | LQ101K1LY02 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 10.1 inch |
| Resolutioun | 1280(RGB)×800 , WXGA |
| Display Modus | ASV, Normally Black, Transmissive |
| aktiv Beräich | 216.96×135.6 mm |
| skizzéieren | 238.12×156.48×6 mm |
| Uewerfläch | Glare (Haze 0%), Antireflection |
| Hellegkeet | 400 cd/m² (Typ.) |
| Kontrast Verhältnis | 800:1 (Typ.) |
| weisen Faarwen | 16.7M (8-bit) |
| Äntwert Zäit | 25 (Typ.)(Tr+Td) |
| Vue Wénkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 7S6PWLEDWithout Driver |
| Signal Interface | LVDS (1 ch, 8-bit), 40 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | PAD |
