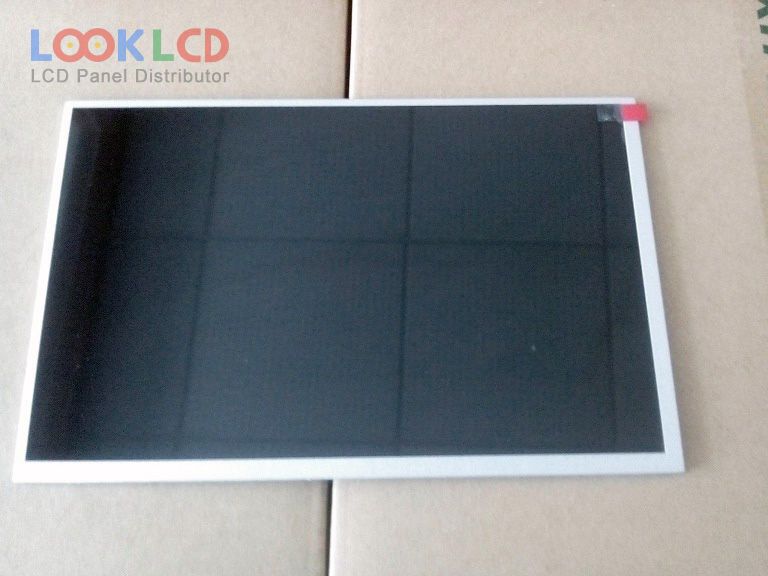

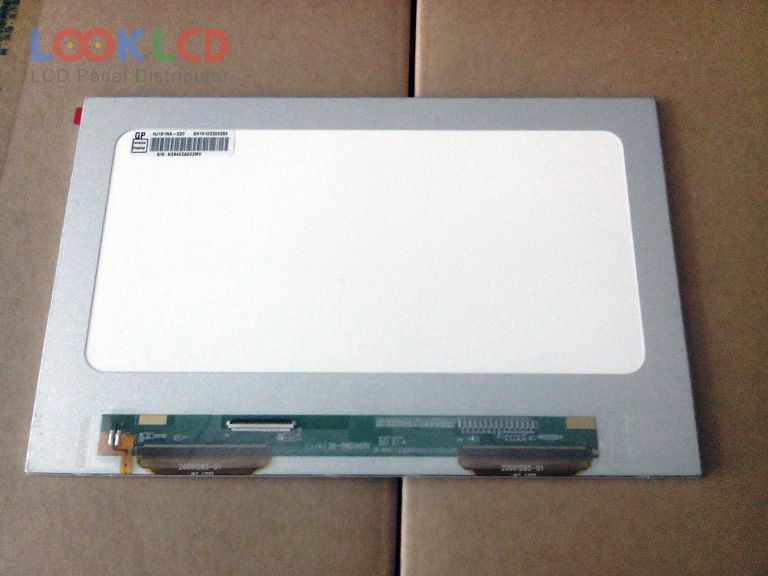

| Part Number | HJ101NA-02C |
| Mark | Innolux |
| Gréisst | 10.1 |
| Applikatioun | PAD |
| Opléisung | 1280×800 |
| Zesummesetzung | LCM |
| Hellegkeet | 250 |
| CR | 700:1 |
| Faarwen | 262K/16.7M |
| Géigeliicht | WLED |
| Interface | LVDS |
| Panel Mark | CHIMEI INNOLUX |
| Panel Modell | HJ101NA-02C |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 10.1 inch |
| Resolutioun | 1280(RGB)×800 , WXGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 216.96×135.6 mm |
| skizzéieren | 229.46×149.1×5.5 mm |
| Uewerfläch | Glare (Haze 0%) |
| Hellegkeet | 250 cd/m² (Typ.) |
| Kontrast Verhältnis | 700:1 (Typ.) |
| weisen Faarwen | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Äntwert Zäit | 10/15 (Typ.)(Tr/Td) |
| Vue Wénkel | 75/75/75/75 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | WLEDWithout Driver |
| Signal Interface | LVDS (1 ch, 6/8-bit), 40 pins |
| Input Volt | 3.3/11.0/20.0/-6.8V (Typ.)(DVDD/AVDD/VGH/VHL) |
| Applikatioun | PAD |
