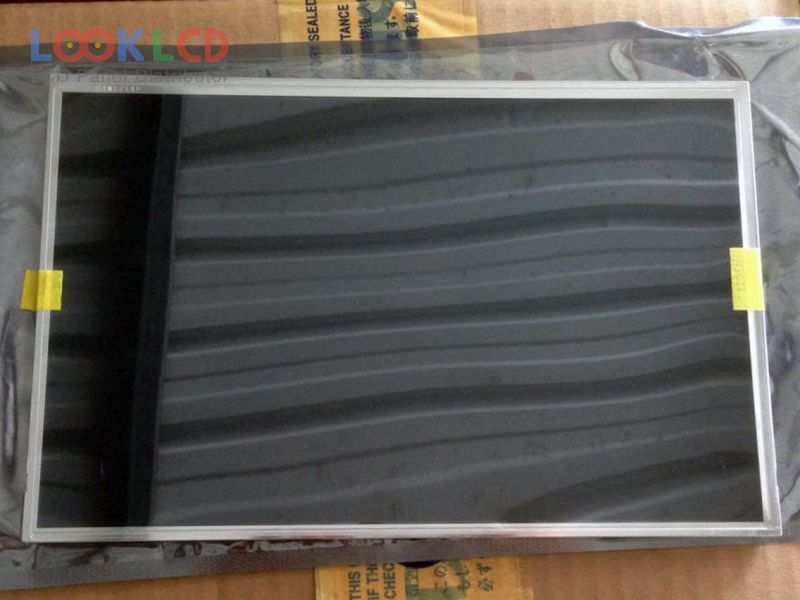

HV121WX6-112

HV121WX6-112
HV121WX6-112
HV121WX6-112 thumb HV121WX6-112 thumb
Mark
HYDIS
Gréisst
12.1
Applikatioun
PAD
Opléisung
1280×800
Zesummesetzung
LCM
Hellegkeet
300
CR
600:1
Faarwen
262K
Backlight
WLED
Interface
LVDS
In Stock
5100
Spezifikatioune

Part Number HV121WX6-112
MarkHYDIS
Gréisst12.1
ApplikatiounPAD
Opléisung1280×800
ZesummesetzungLCM
Hellegkeet300
CR600:1
Faarwen262K
GéigeliichtWLED
InterfaceLVDS
Panel MarkHYDIS
Panel ModellHV121WX6-112 1 Compatible model
Panel Typ a-Si TFT-LCD , LCM
Panel Gréisst12.1 inch
Resolutioun1280(RGB)×800 , WXGA
Display ModusAFFS, Normally Black, Transmissive
aktiv Beräich261.12×163.2 mm
skizzéieren276.8×180×6.6 mm
Uewerfläch
Hellegkeet300 cd/m² (Typ.)
Kontrast Verhältnis600:1 (Typ.)
weisen Faarwen262K (6-bit)
Äntwert Zäit25 (Typ.)(Tr+Td)
Vue Wénkel89/89/89/89 (Typ.)(CR≥10)(L/R/U/D)
Frequenz60Hz
Lampe Typ12S4PWLEDEmbedded (LED Driver)
Signal InterfaceLVDS (1 ch, 6-bit), 40 pins
Input Volt3.3V (Typ.)
ApplikatiounPAD
