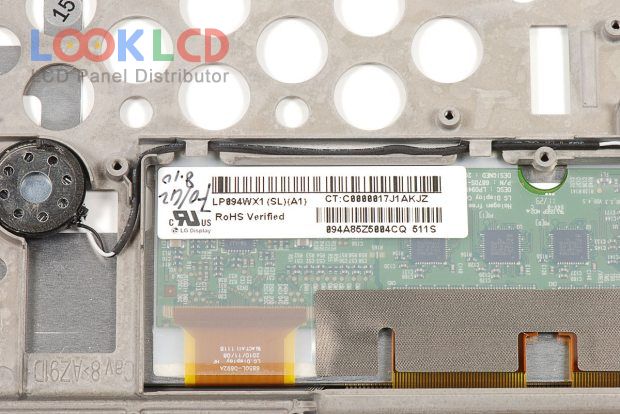

| Part Number | LP094WX1-SLA1 |
| Mark | LG Display |
| Gréisst | 9.4 |
| Applikatioun | PAD |
| Opléisung | 1280×800 |
| Zesummesetzung | Assembly |
| Hellegkeet | 320 |
| CR | 600:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | LVDS |
| Panel Mark | LG Display |
| Panel Modell | LP094WX1-SLA1 |
| Panel Typ | a-Si TFT-LCD , Assembly |
| Panel Gréisst | 9.4 inch |
| Resolutioun | 1280(RGB)×800 , WXGA |
| aktiv Beräich | 201.6×126 mm |
| skizzéieren | 237.7×161.45×6.5 mm |
| Uewerfläch | Anti-Scatter |
| Hellegkeet | 320 cd/m² (Typ.) |
| Kontrast Verhältnis | 600:1 (Typ.) |
| weisen Faarwen | 262K (6-bit), CIE193150% |
| Vue Wénkel | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Signal Interface | LVDS (1 ch, 6-bit), 39 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | PAD |
