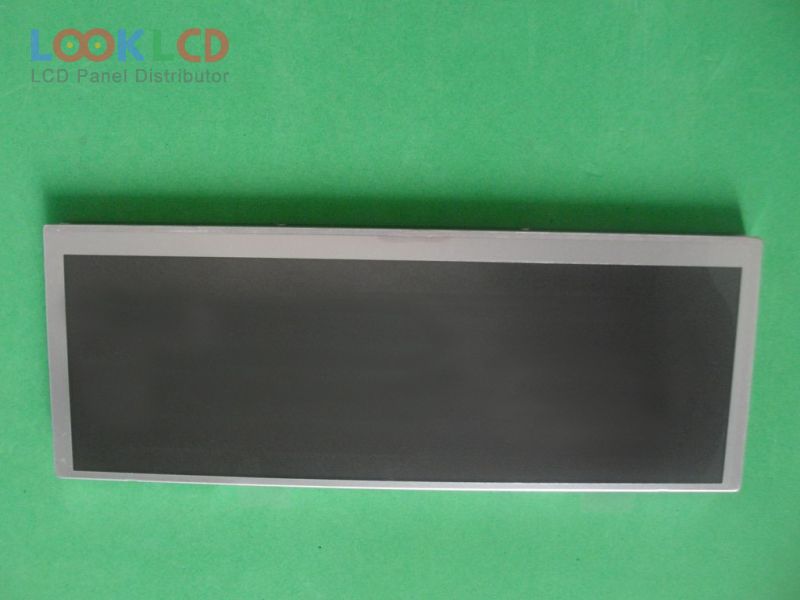

| Part Number | LQ101K5DZ01 |
| Mark | SHARP |
| Gréisst | 10.1 |
| Applikatioun | CNS |
| Opléisung | 1280×422 |
| Zesummesetzung | LCM |
| Hellegkeet | 500 |
| CR | 2000:1 |
| Faarwen | 16.2M |
| Géigeliicht | WLED |
| Interface | TTL |
| Panel Mark | SHARP |
| Panel Modell | LQ101K5DZ01 1 Compatible model |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 10.1 inch |
| Resolutioun | 1280(RGB)×422 |
| Display Modus | ASV, Normally Black, Transmissive |
| aktiv Beräich | 242.88×80.07 mm |
| skizzéieren | 259.7×96.5 mm |
| Uewerfläch | Antiglare, Reflection 1.5% (Typ.) |
| Hellegkeet | 500 cd/m² (Typ.) |
| Kontrast Verhältnis | 2000:1 (Typ.) |
| weisen Faarwen | 16.2M (6-bit + FRC) |
| Äntwert Zäit | 15/5 (Typ.)(Tr/Td) |
| Vue Wénkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | WLEDEmbedded (LED Driver) |
| Signal Interface | Parallel RGB (1 ch, 8-bit), 68 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | CNS |
| B101UAN01.1 | AUO | 10.1 | 1920×1200 |
| HSD101PWW1-B00 | HannStar | 10.1 | 1280×800 |
| LP101WSB-TLN1 | LG Display | 10.1 | 1024×600 |
| LQ101K1LY02 | SHARP | 10.1 | 1280×800 |
| LQ101K5DZ01 | SHARP | 10.1 | 1280×422 |
| LQ101R1SX01A | SHARP | 10.1 | 2560×1600 |
| LQ101R1SX03 | SHARP | 10.1 | 2560×1600 |
| M101NWT2 R1 | IVO | 10.1 | 1024×600 |
| N101ICG-L11 | Innolux | 10.1 | 1280×800 |
| PQ 3Qi-01 | Pixel Qi | 10.1 | 1024×600 |
| 70WVW2T | SII | 7.0 | 800×480 |
| CLAA070LFA1 CW | CPT | 7.0 | 800×480 |
| CLAA080NA01 CW | CPT | 8.0 | 1024×600 |
| DLC1040ABG-T-2 | Other | 10.4 | 800×600 |
| G080Y1-T01 | Innolux | 8.0 | 800×480 |
| LA070WV4-SD04 | LG Display | 7.0 | 800×480 |
| LAJ084T001A | TPO | 8.4 | 800×600 |
| LB070WQ6-TD01 | LG Display | 7.0 | 400×234 |
| LQ065T5BR08 | SHARP | 6.5 | 400×240 |
| TX18D35VM0AAA | KOE | 7.0 | 800×480 |
