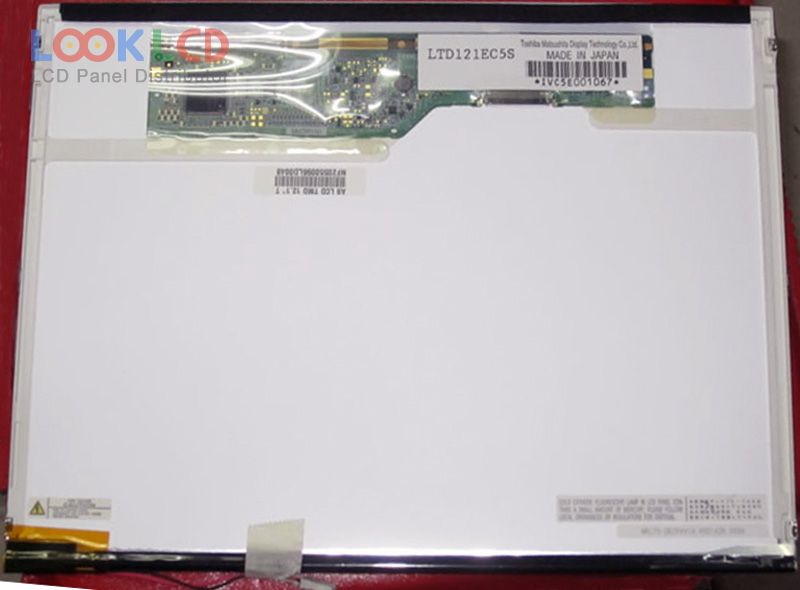

| Part Number | LTD121EC5S |
| Mark | TOSHIBA |
| Gréisst | 12.1 |
| Applikatioun | NBPC |
| Opléisung | 1024×768 |
| Zesummesetzung | LCM |
| Hellegkeet | 200 |
| CR | 250:1 |
| Faarwen | 262K |
| Géigeliicht | CCFL |
| Interface | LVDS |
| Panel Mark | Toshiba Matsushita |
| Panel Modell | LTD121EC5S 6 Compatible model |
| Panel Typ | LTPS TFT-LCD , LCM |
| Panel Gréisst | 12.1 inch |
| Resolutioun | 1024(RGB)×768 , XGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 245.76×184.32 mm |
| skizzéieren | 261×199×5 mm |
| Uewerfläch | |
| Hellegkeet | 200 cd/m² (Typ.) |
| Kontrast Verhältnis | 250:1 (Typ.) |
| weisen Faarwen | 262K (6-bit) |
| Äntwert Zäit | 25/25 (Max.)(Tr/Td) |
| Vue Wénkel | 30/30/10/20 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 1 pcsCCFLWithout Driver |
| Signal Interface | LVDS (1 ch, 6-bit), 20 pins |
| Input Volt | 3.3V (Typ.) |
| rohs: | |
| Applikatioun | NBPC |
