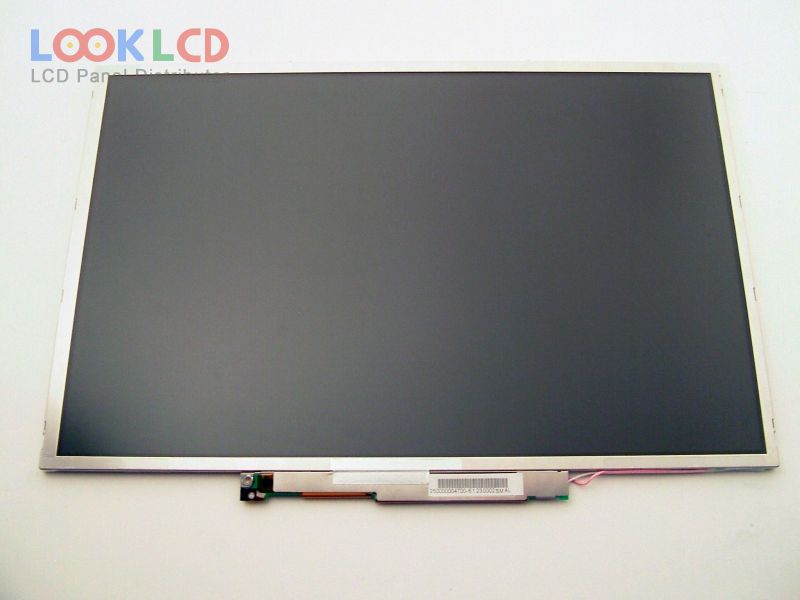

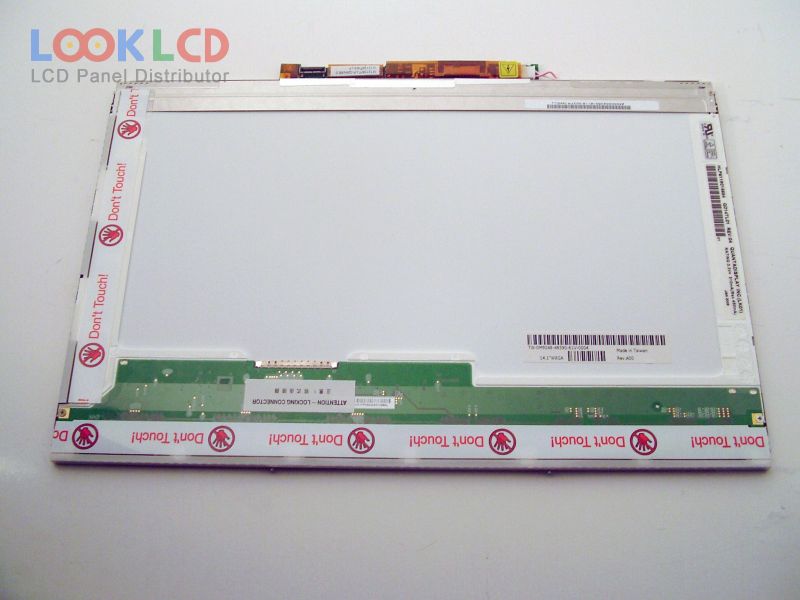

| Part Number | QD14TL01 Rev.04 |
| Mark | QDI |
| Gréisst | 14.1 |
| Applikatioun | NBPC |
| Opléisung | 1280×800 |
| Zesummesetzung | LCM |
| Hellegkeet | 185 |
| CR | 300:1 |
| Faarwen | 262K |
| Géigeliicht | CCFL |
| Interface | LVDS |
| Panel Mark | QDI |
| Panel Modell | QD14TL01 Rev.04 9 Compatible model |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 14.1 inch |
| Resolutioun | 1280(RGB)×800 , WXGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 303.74×189.84 mm |
| skizzéieren | 319.5×218×5.5 mm |
| Form Stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Uewerfläch | Antiglare, Hard coating (3H) |
| Hellegkeet | 185 cd/m² (Typ.) |
| Kontrast Verhältnis | 300:1 (Typ.) |
| weisen Faarwen | 262K (6-bit) |
| Äntwert Zäit | 25 (Typ.)(Tr+Td) |
| Vue Wénkel | 40/40/10/30 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 1 pcsCCFLEmbedded (Inverter) |
| Signal Interface | LVDS (1 ch, 6-bit), 30 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | NBPC |
| B141XG09 V0 | AUO | 14.1 | 1024×768 |
| B141XN03 V0 | AUO | 14.1 | 1024×768 |
| HT141WXB-100 | BOE | 14.1 | 1280×800 |
| LT141X7-124 | Samsung | 14.1 | 1024×768 |
| LTM14C421F | TOSHIBA | 14.1 | 1024×768 |
| LTN141BT01-004 | Samsung | 14.1 | 1440×900 |
| LTN141X4-156 | Samsung | 14.1 | 1024×768 |
| LTN141XF-L03 | Samsung | 14.1 | 1024×768 |
| NL10276BC28-21A | NLT | 14.1 | 1024×768 |
| QD14TL01 Rev.04 | QDI | 14.1 | 1280×800 |
| B141EW02 V3 | AUO | 14.1 | 1280×800 |
| LP140WF1-SPJ1 | LG Display | 14.0 | 1920×1080 |
| LP141WP1-TLC3 | LG Display | 14.1 | 1440×900 |
| LP141WX3-TLA4 | LG Display | 14.1 | 1280×800 |
| LP154WP4-TLA1 | LG Display | 15.4 | 1440×900 |
| LTD131EWSX | TOSHIBA | 13.1 | 1366×768 |
| LTN125AT03-803 | Samsung | 12.5 | 1366×768 |
| LTN173KT01-D01 | Samsung | 17.3 | 1600×900 |
| LTN173KT01-W04 | Samsung | 17.3 | 1600×900 |
| N141I3-L05 | Innolux | 14.1 | 1280×800 |
