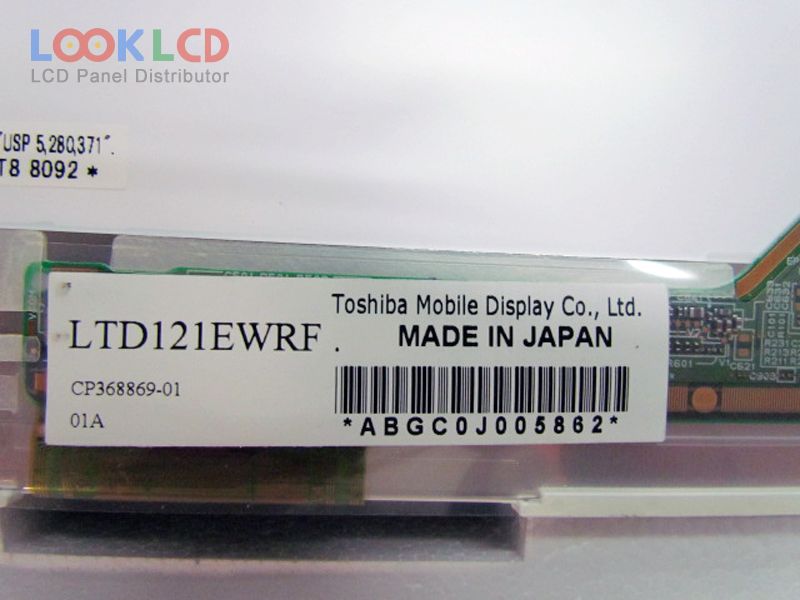

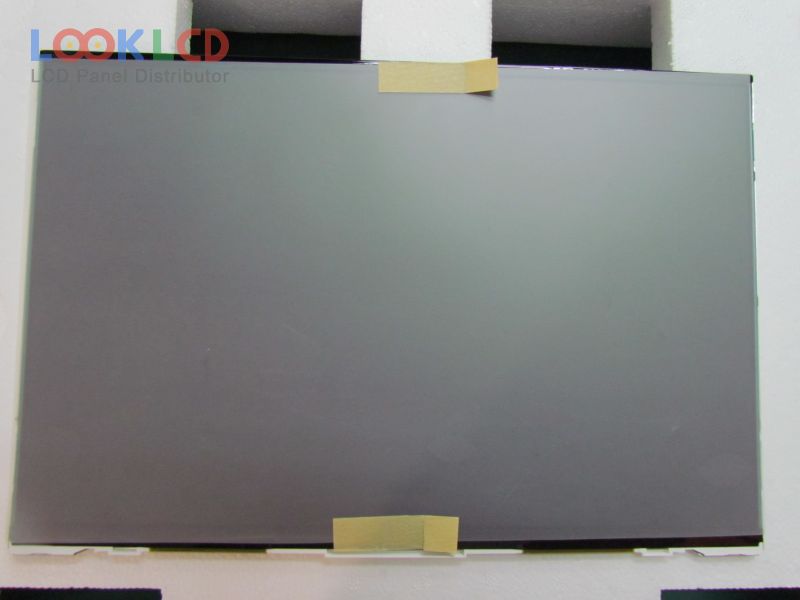

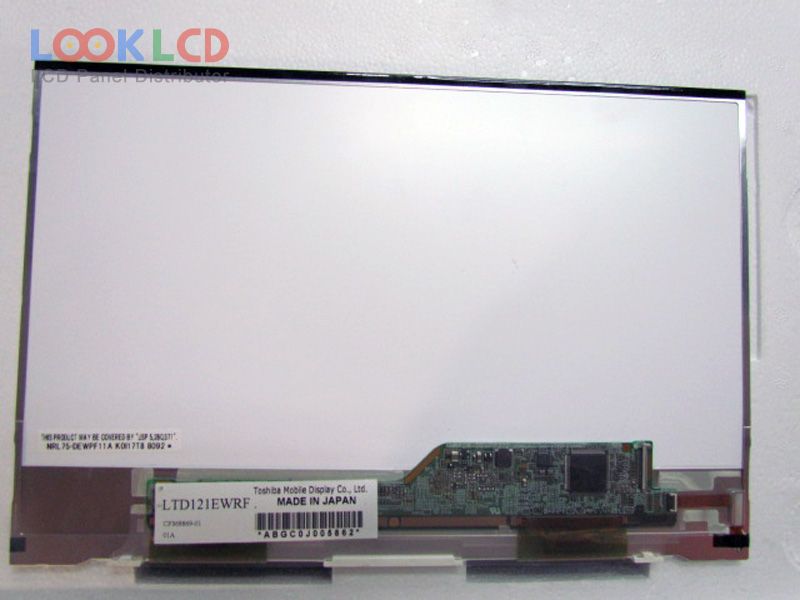

| Part Number | LTD121EWRF |
| Mark | TOSHIBA |
| Gréisst | 12.1 |
| Applikatioun | NBPC |
| Opléisung | 1280×800 |
| Zesummesetzung | LCM |
| Hellegkeet | 300 |
| CR | 250:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | LVDS |
| Panel Mark | Toshiba Mobile Display |
| Panel Modell | LTD121EWRF |
| Panel Typ | LTPS TFT-LCD , LCM |
| Panel Gréisst | 12.1 inch |
| Resolutioun | 1280(RGB)×800 , WXGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 261.12×163.2 mm |
| skizzéieren | 268.1×180.2×4.27 mm |
| Uewerfläch | Antiglare |
| Hellegkeet | 300 cd/m² (Typ.) |
| Kontrast Verhältnis | 250:1 (Typ.) |
| weisen Faarwen | 262K (6-bit) |
| Äntwert Zäit | 80 (Max.)(Tr+Td) |
| Vue Wénkel | |
| Frequenz | 60Hz |
| Lampe Typ | 6 stringsWLEDWithout Driver |
| Signal Interface | LVDS (1 ch, 6-bit), 30 pins |
| Input Volt | 2.5V (Typ.) |
| Applikatioun | NBPC |
| LTD121EA3P | TOSHIBA | 12.1 | 1024×768 |
| LTD121EA4X | TOSHIBA | 12.1 | 1024×768 |
| LTD121EWPF | TOSHIBA | 12.1 | 1280×800 |
| LTD121EWRF | TOSHIBA | 12.1 | 1280×800 |
| LTD121EWUD | TOSHIBA | 12.1 | 1280×800 |
| LTD121EX1S | TOSHIBA | 12.1 | 1280×768 |
| LTD121EXPD | TOSHIBA | 12.1 | 1280×800 |
| LTD121EXSS | TOSHIBA | 12.1 | 1280×800 |
| LTD121KX4K | TOSHIBA | 12.1 | 1280×800 |
| LTD121KX5V | TOSHIBA | 12.1 | 1280×800 |
| B121EW07 V1 | AUO | 12.1 | 1280×800 |
| B156XTN03.5 | AUO | 15.6 | 1366×768 |
| HT140WXB-100 | BOE | 14.0 | 1366×768 |
| LP140WH2-TLN1 | LG Display | 14.0 | 1366×768 |
| LP154W01-TLF1 | LG Display | 15.4 | 1280×800 |
| LP156WH2-TLAA | LG Display | 15.6 | 1366×768 |
| LP173WF1-TLA2 | LG Display | 17.3 | 1920×1080 |
| LTD121EX1S | TOSHIBA | 12.1 | 1280×768 |
| N156B3-L01 | Innolux | 15.6 | 1366×768 |
| TX41D97VC1HAA | KOE | 16.1 | 1400×1050 |
