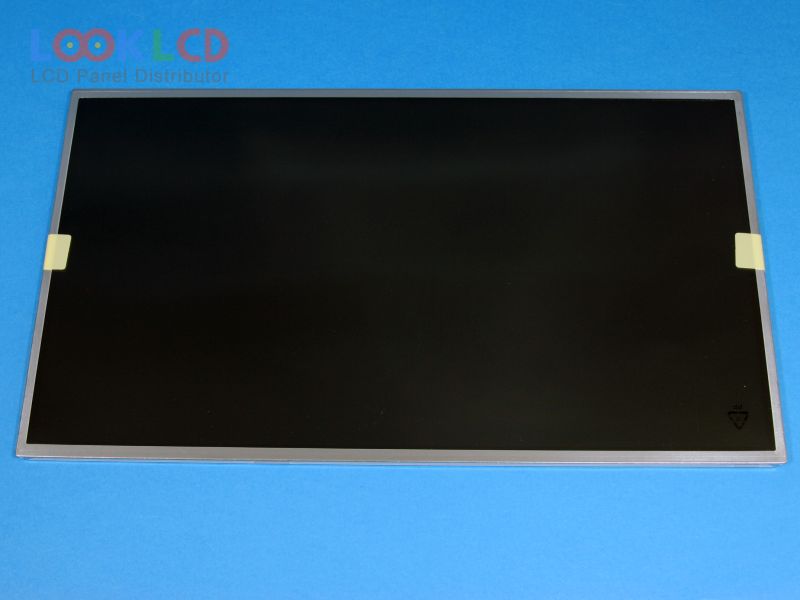

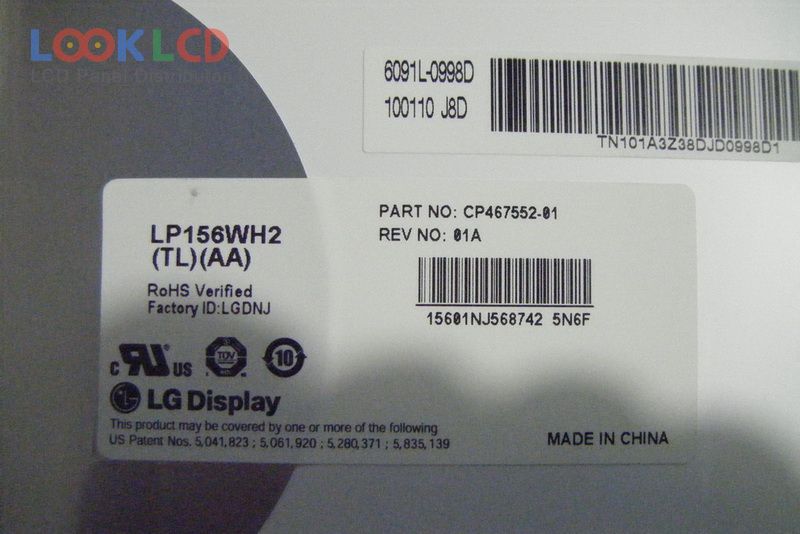

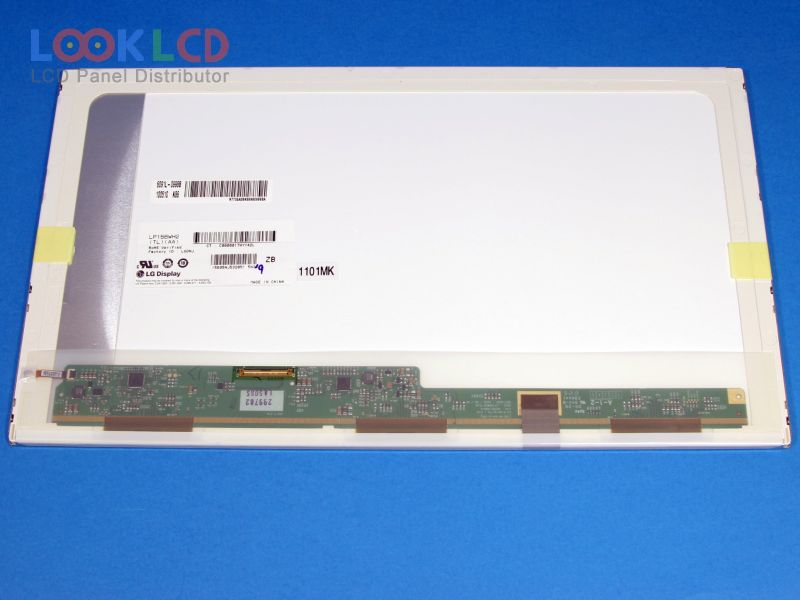

| Part Number | LP156WH2-TLAA |
| Mark | LG Display |
| Gréisst | 15.6 |
| Applikatioun | NBPC |
| Opléisung | 1366×768 |
| Zesummesetzung | LCM |
| Hellegkeet | 200 |
| CR | 400:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | LVDS |
| Panel Mark | LG Display |
| Panel Modell | LP156WH2-TLAA 61 Compatible model |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 15.6 inch |
| Resolutioun | 1366(RGB)×768 , WXGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 344.232×193.536 mm |
| skizzéieren | 359.3×209.5×5.5 mm |
| Form Stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Uewerfläch | Glare (Haze 0%), Hard coating (3H) |
| Hellegkeet | 200 cd/m² (Typ.) |
| Kontrast Verhältnis | 400:1 (Min.) |
| weisen Faarwen | 262K (6-bit), CIE193160% |
| Äntwert Zäit | 16 (Typ.)(Tr+Td) |
| Vue Wénkel | 40/40/10/30 (Min.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | WLEDEmbedded (LED Driver) |
| Signal Interface | LVDS (1 ch, 6-bit), 40 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | NBPC |
| LP156WF1-TLA1 | LG Display | 15.6 | 1920×1080 |
| LP156WF3-SLB2 | LG Display | 15.6 | 1920×1080 |
| LP156WF4-SPH3 | LG Display | 15.6 | 1920×1080 |
| LP156WF6-SPK1 | LG Display | 15.6 | 1920×1080 |
| LP156WH1-TLA3 | LG Display | 15.6 | 1366×768 |
| LP156WH2-TLC1 | LG Display | 15.6 | 1366×768 |
| LP156WH2-TLRA | LG Display | 15.6 | 1366×768 |
| LP156WH4-TLA1 | LG Display | 15.6 | 1366×768 |
| LP156WH4-TLN1 | LG Display | 15.6 | 1366×768 |
| LP156WHU-TPB1 | LG Display | 15.6 | 1366×768 |
| B141EW05 V4 | AUO | 14.1 | 1280×800 |
| LP141WX3-TLB1 | LG Display | 14.1 | 1280×800 |
| LP154WE2-TLA8 | LG Display | 15.4 | 1680×1050 |
| LQ13X32 | SHARP | 13.3 | 1024×768 |
| LTN121AT11-803 | Samsung | 12.1 | 1280×800 |
| LTN140AT04-G01 | Samsung | 14.0 | 1366×768 |
| LTN150KT02-801 | Samsung | 15.0 | 1600×900 |
| N101BGE-L21 | Innolux | 10.1 | 1366×768 |
| N133BGE-EB1 | Innolux | 13.3 | 1366×768 |
| QD141X1LH12 Rev.A | QDI | 14.1 | 1024×768 |
