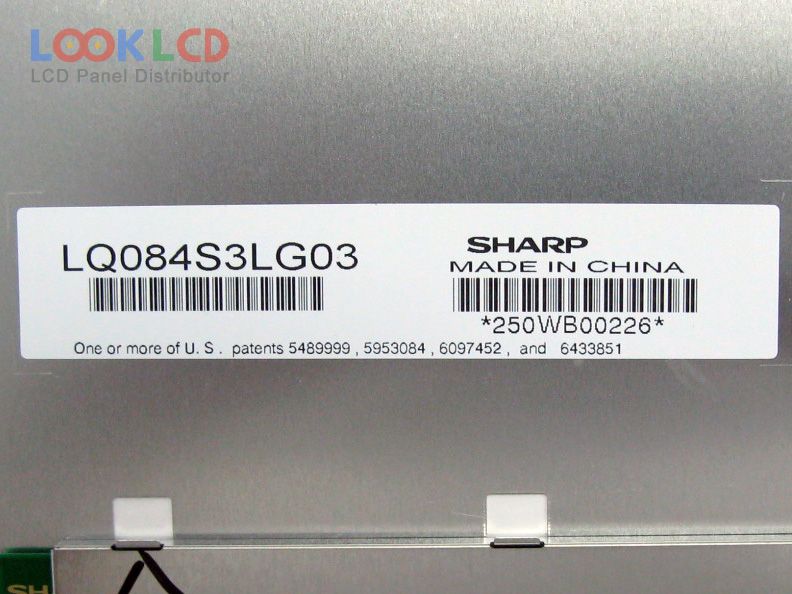

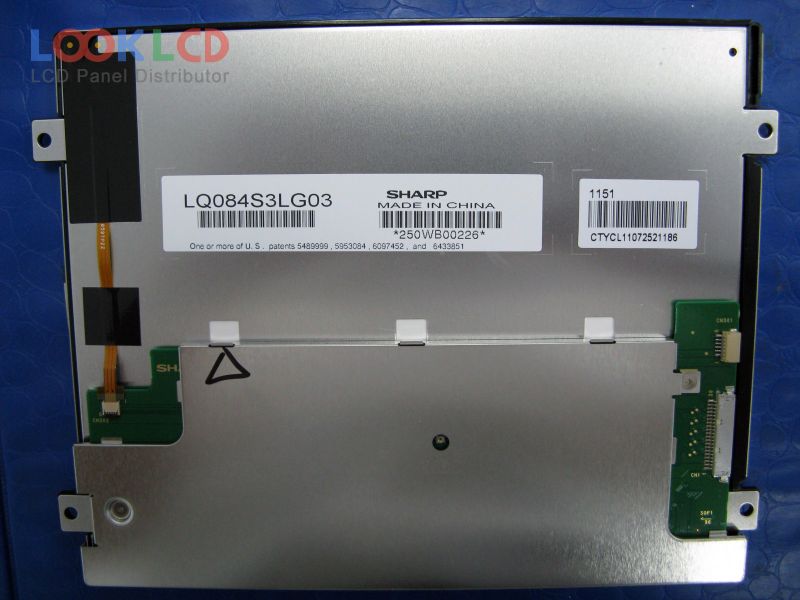

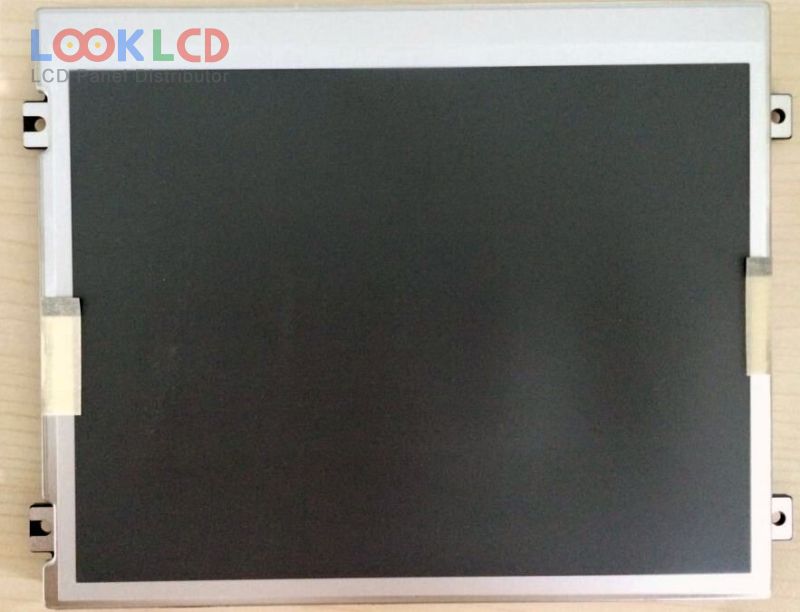

| Part Number | LQ084S3LG03 |
| Mark | SHARP |
| Gréisst | 8.4 |
| Applikatioun | IA |
| Opléisung | 800×600 |
| Zesummesetzung | LCM |
| Hellegkeet | 330 |
| CR | 450:1 |
| Faarwen | 262K/16.7M |
| Géigeliicht | WLED |
| Interface | LVDS |
| Panel Mark | SHARP |
| Panel Modell | LQ084S3LG03 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 8.4 inch |
| Resolutioun | 800(RGB)×600 , SVGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 170.4×127.8 mm |
| skizzéieren | 199.5×154×12.45 mm |
| Uewerfläch | Antiglare, Hard coating (2H) |
| Hellegkeet | 330 cd/m² (Typ.) |
| Kontrast Verhältnis | 450:1 (Typ.) |
| weisen Faarwen | 262K/16.7M (6-bit / 8-bit) |
| Äntwert Zäit | 35 (Typ.)(Tr+Td) |
| Vue Wénkel | 65/65/60/55 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | WLEDEmbedded (LED Driver) |
| Signal Interface | LVDS (1 ch, 6/8-bit), 20 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | IA |
