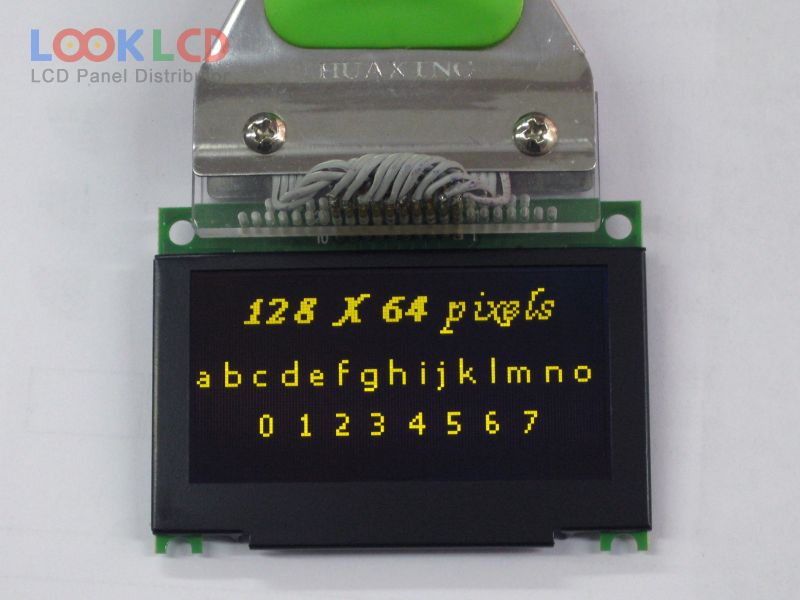

| Part Number | HGS128645-Y-EH-LV |
| Mark | Other |
| Gréisst | 2.7 |
| Applikatioun | IA |
| Opléisung | 128×64 |
| Zesummesetzung | OLED |
| Hellegkeet | 100 |
| CR | 2000:1 |
| Faarwen | Mono(Yellow) |
| Géigeliicht | self |
| Interface | CPU/SPI |
| Panel Mark | TSINGTEK |
| Panel Modell | HGS128645-Y-EH-LV |
| Panel Typ | PM-OLED , OLED |
| Panel Gréisst | 2.7 inch |
| Resolutioun | 128×64 |
| aktiv Beräich | 61.41×30.69 mm |
| skizzéieren | 75×53.5×7 mm |
| Uewerfläch | |
| Hellegkeet | 100 cd/m² (Typ.) |
| Kontrast Verhältnis | 2000 : 1 (Min.) |
| weisen Faarwen | Mono(Yellow) |
| Vue Wénkel | 80/80/80/80 (Min.)(L/R/U/D) |
| Chauffeur ic | Built-in SSD1325 |
| Signal Interface | 8-bit 6800/8080 parallel, SPI, 20 pins |
| Input Volt | 3.3V (Typ.) |
| rohs: | |
| Applikatioun | IA |
