HGS128647-Y-EH-LV

HGS128647-Y-EH-LV

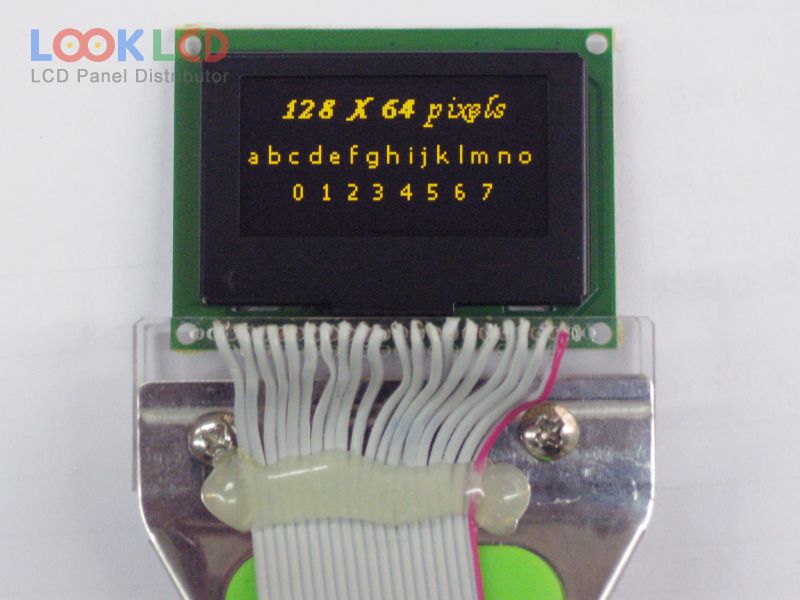

HGS128647-Y-EH-LV thumb
Mark
Other
Gréisst
1.54
Applikatioun
IA
Opléisung
128×64
Zesummesetzung
OLED
Hellegkeet
150
CR
2000:1
Faarwen
Mono(Yellow)
Backlight
self
Interface
CPU/SPI/I²C
In Stock
13674
Spezifikatioune

Part Number HGS128647-Y-EH-LV
MarkOther
Gréisst1.54
ApplikatiounIA
Opléisung128×64
ZesummesetzungOLED
Hellegkeet150
CR2000:1
FaarwenMono(Yellow)
Géigeliichtself
InterfaceCPU/SPI/I²C
Panel MarkTSINGTEK
Panel ModellHGS128647-Y-EH-LV
Panel Typ PM-OLED , OLED
Panel Gréisst1.54 inch
Resolutioun128×64
aktiv Beräich35.056×17.52 mm
skizzéieren54×39.5×8.5 mm
Uewerfläch
Hellegkeet150 cd/m² (Typ.)
Kontrast Verhältnis2000 : 1 (Min.)
weisen FaarwenMono(Yellow)
Vue Wénkel80/80/80/80 (Min.)(L/R/U/D)
Chauffeur icBuilt-in SSD1305
Signal Interface8-bit 6800/8080 parallel, 4-wire SPI, I²C, 20 pins
Input Volt3.3V (Typ.)
rohs:
ApplikatiounIA
