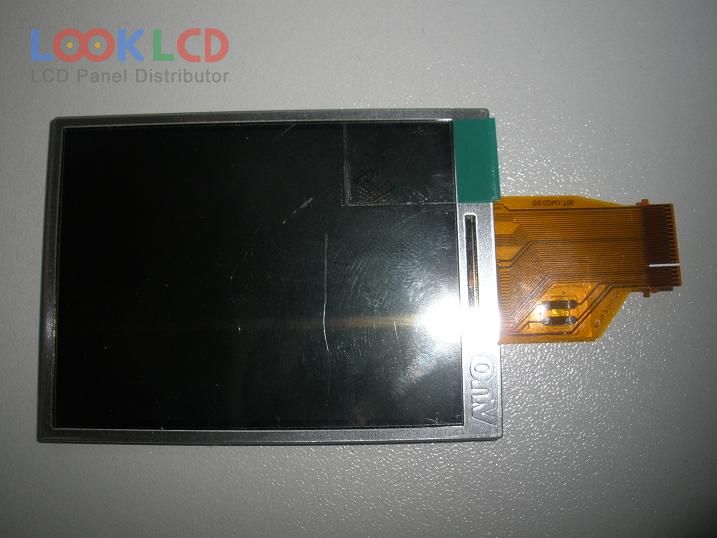

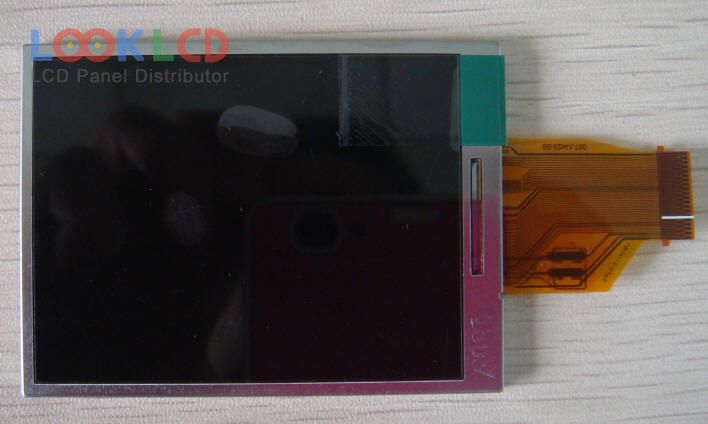

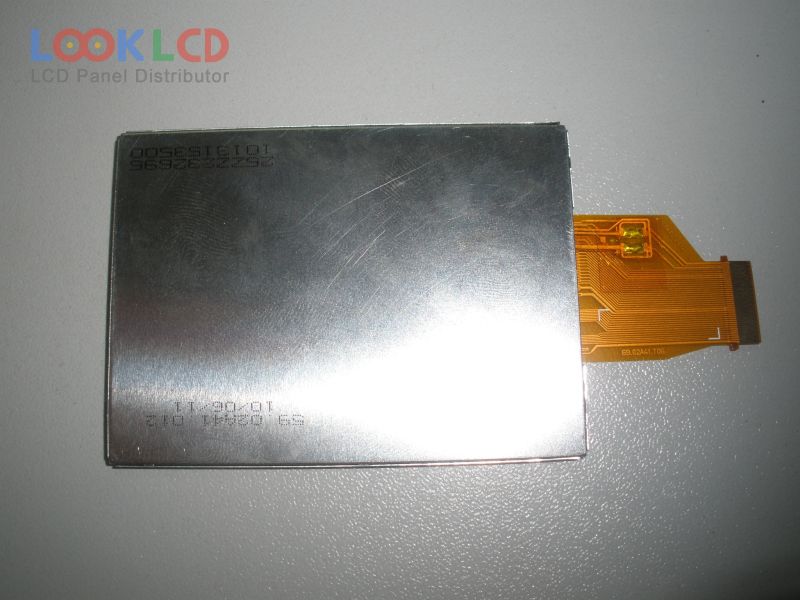

| Part Number | A027DN03 V1 |
| Mark | AUO |
| Gréisst | 2.7 |
| Applikatioun | DSC |
| Opléisung | 320×240 |
| Zesummesetzung | LCM |
| Hellegkeet | 350 |
| CR | 300:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | Serial RGB |
| Panel Mark | AUO |
| Panel Modell | A027DN03 V1 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 2.7 inch |
| Resolutioun | 320(RGB)×240 , QVGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 54×40.5 mm |
| skizzéieren | 63.5×46.6×2.4 mm |
| Uewerfläch | Glare (Haze 0%) |
| Hellegkeet | 350 cd/m² (Typ.) |
| Kontrast Verhältnis | 300:1 (Typ.) |
| weisen Faarwen | 16.7M (8-bit) |
| Äntwert Zäit | 10/25 (Typ.)(Tr/Td) |
| Vue Wénkel | 60/60/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 2S1PWLEDWithout Driver |
| Signal Interface | Serial RGB (8-bit) + SPI, CCIR601/656, 39 pins |
| Input Volt | 3.3/13/-10V (VDD/VGH/VGL) |
| Applikatioun | DSC |
