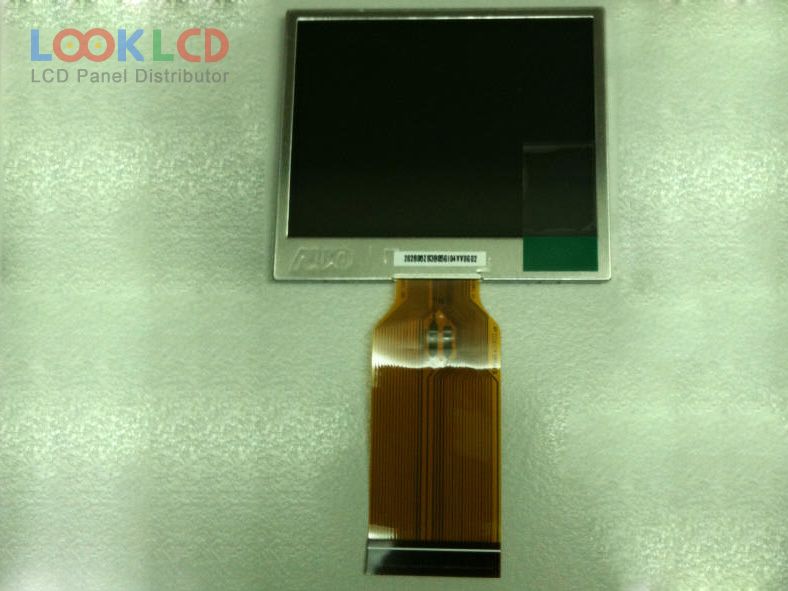

| Part Number | A024CN03 V2 |
| Mark | AUO |
| Gréisst | 2.4 |
| Applikatioun | DSC |
| Opléisung | 480×234 |
| Zesummesetzung | LCM |
| Hellegkeet | 250 |
| CR | 250:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | Serial RGB |
| Panel Mark | AUO |
| Panel Modell | A024CN03 V2 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 2.4 inch |
| Resolutioun | 480×234 |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 48×35.685 mm |
| skizzéieren | 54.9×47.45 mm |
| Uewerfläch | Hard coating |
| Hellegkeet | 250 cd/m² (Typ.) |
| Kontrast Verhältnis | 250:1 (Typ.) |
| weisen Faarwen | 16.7M (8-bit) |
| Äntwert Zäit | 20/30 (Typ.)(Tr/Td) |
| Vue Wénkel | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| Lampe Typ | WLED |
| Signal Interface | Serial RGB (8-bit) + SPI, CCIR656, 40 pins |
| Input Volt | 3.3/3.3/12.5/-12.5V (Typ.)(VCC/PVDD/VGH/VGL) |
| rohs: | |
| Applikatioun | DSC |
| 24QVF2H | SII | 2.4 | 240×320 |
| A024CN02 VJ | AUO | 2.4 | 480×234 |
| A024CN02 VL | AUO | 2.4 | 480×234 |
| A024CN02 VR | AUO | 2.4 | 480×234 |
| A024CN03 V2 | AUO | 2.4 | 480×234 |
| AMCE002 | Samsung | 2.4 | 240×320 |
| CT024TN04 V.F | Innolux | 2.4 | 240×320 |
| DMC-16117A | Kyocera | 2.4 | 16×1 |
| LH240Q29-SH04 | LG Display | 2.4 | 240×320 |
| RGS24128064WW001 | RiTdisplay | 2.4 | 128×64 |
| A015AN03 V0 | AUO | 1.46 | 280×220 |
| A030DN01 V9 | AUO | 3.0 | 320×240 |
| A035QN02 VE | AUO | 3.5 | 320×240 |
| ACX385AKM-7 | SONY | 2.5 | 640×240 |
| LS025A8DZ01S | SHARP | 2.5 | 320×240 |
| LTV250QV-F0A | Samsung | 2.5 | 320×240 |
| PA035XSL | E Ink | 3.5 | 320×234 |
| PT035TN23 V.3 | Innolux | 3.5 | 320×240 |
| TD020THEG1 | TPO | 2.0 | 640×240 |
| TM035KBH02 | Tianma | 3.5 | 320×240 |
