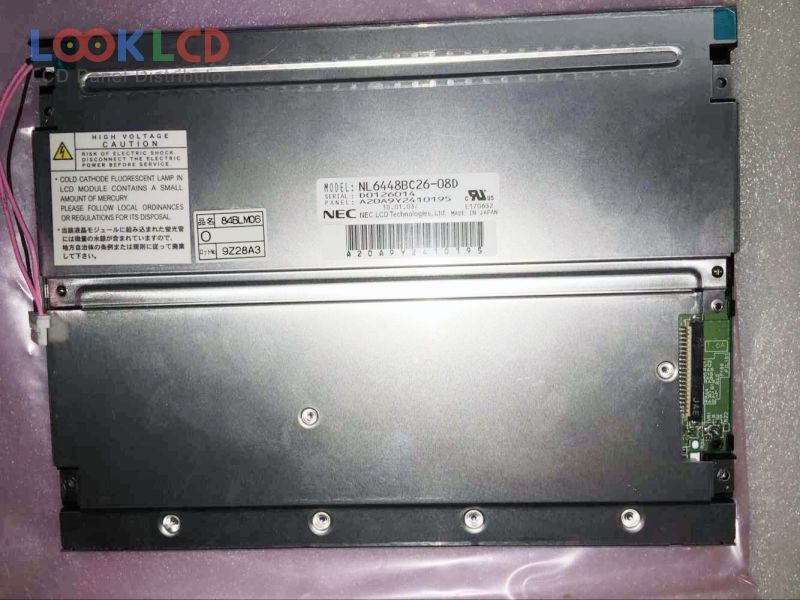

| Part Number | NL6448BC26-08D |
| Mark | NLT |
| Gréisst | 8.4 |
| Applikatioun | IA |
| Opléisung | 640×480 |
| Zesummesetzung | LCM |
| Hellegkeet | 400 |
| CR | 800:1 |
| Faarwen | 262K/16.7M |
| Géigeliicht | CCFL |
| Interface | LVDS |
| Panel Mark | NEC |
| Panel Modell | NL6448BC26-08D |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 8.4 inch |
| Resolutioun | 640(RGB)×480 , VGA |
| Display Modus | UA-SFT, Normally Black, Transmissive |
| aktiv Beräich | 170.88×128.16 mm |
| skizzéieren | 200×152 mm |
| Uewerfläch | Antiglare, Hard coating (3H) |
| Hellegkeet | 400 cd/m² (Typ.) |
| Kontrast Verhältnis | 800:1 (Typ.) |
| weisen Faarwen | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193172% |
| Äntwert Zäit | 10/10 (Typ.)(Tr/Td) |
| Vue Wénkel | 88/88/88/88 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 2 pcsCCFLWithout Driver |
| Signal Interface | LVDS (1 ch, 6/8-bit), 20 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | IA |
