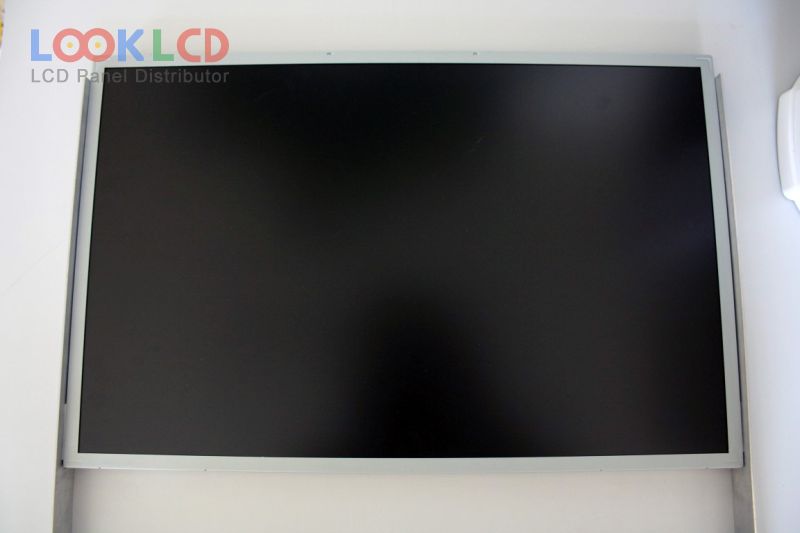

| Part Number | LM240WU8-SLA2 |
| Mark | LG Display |
| Gréisst | 24.0 |
| Applikatioun | IA |
| Opléisung | 1920×1200 |
| Zesummesetzung | LCM |
| Hellegkeet | 300 |
| CR | 1000:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | LVDS |
| Panel Mark | LG Display |
| Panel Modell | LM240WU8-SLA2 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 24.0 inch |
| Resolutioun | 1920(RGB)×1200 , WUXGA |
| Display Modus | UH-IPS, Normally Black, Transmissive |
| aktiv Beräich | 518.4×324 mm |
| skizzéieren | 546.4×352×15 mm |
| Uewerfläch | Antiglare, Hard coating (3H) |
| Hellegkeet | 300 cd/m² (Typ.) |
| Kontrast Verhältnis | 1000:1 (Typ.) |
| weisen Faarwen | 16.7M (6-bit + Hi-FRC), CIE193172% |
| Äntwert Zäit | 14 (Typ.)(G to G) |
| Vue Wénkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 4 stringsWLEDWithout Driver |
| Signal Interface | LVDS (2 ch, 8-bit), 30 pins |
| Input Volt | 12.0V (Typ.) |
| Applikatioun | IA |
| LM240WU2-SLB1 | LG Display | 24.0 | 1920×1200 |
| LM240WU3-TLD1 | LG Display | 24.0 | 1920×1200 |
| LM240WU4-SLA1 | LG Display | 24.0 | 1920×1200 |
| LM240WU5-SLA1 | LG Display | 24.0 | 1920×1200 |
| LM240WU6-SDA1 | LG Display | 24.0 | 1920×1200 |
| LM240WU7-SLA1 | LG Display | 24.0 | 1920×1200 |
| LM240WU7-SLB3 | LG Display | 24.0 | 1920×1200 |
| LM240WU8-SLA3 | LG Display | 24.0 | 1920×1200 |
| LM240WU8-SLD1 | LG Display | 24.0 | 1920×1200 |
| LM240WU8-SLE1 | LG Display | 24.0 | 1920×1200 |
| ER0570B2NC6 | EDT | 5.7 | 320×240 |
| G050VTN01.1 | AUO | 5.0 | 800×480 |
| HLD0909-020010 | Hosiden | 9.0 | 640×480 |
| KCS057QV1AJ-G32 | Kyocera | 5.7 | 320×240 |
| LM8V302H | SHARP | 7.7 | 640×480 |
| NL3224BC35-20R | NLT | 5.5 | 320×240 |
| NL8060BC31-28D | NLT | 12.1 | 800×600 |
| NL8060BC31-47 | NLT | 12.1 | 800×600 |
| TX20D28VM2BAB | KOE | 8.0 | 800×480 |
| UG-2864ASYDT01 | WiseChip | 2.7 | 128×64 |
