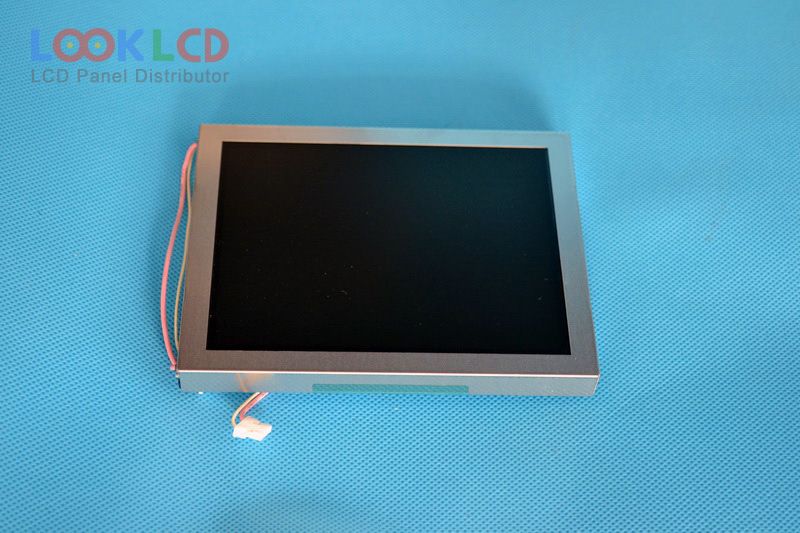

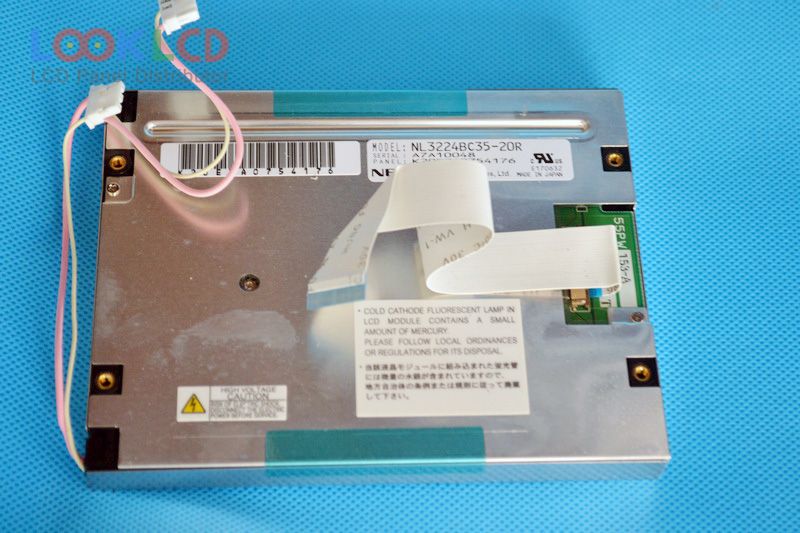

| Part Number | NL3224BC35-20R |
| Mark | NLT |
| Gréisst | 5.5 |
| Applikatioun | IA |
| Opléisung | 320×240 |
| Zesummesetzung | LCM |
| Hellegkeet | |
| CR | |
| Faarwen | 262K |
| Géigeliicht | CCFL |
| Interface | TTL |
| Panel Mark | NEC |
| Panel Modell | NL3224BC35-20R |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 5.5 inch |
| Resolutioun | 320(RGB)×240 , QVGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 111.36×83.52 mm |
| skizzéieren | 134×104.5 mm |
| Uewerfläch | |
| Hellegkeet | |
| Kontrast Verhältnis | |
| weisen Faarwen | 262K (6-bit) |
| Äntwert Zäit | |
| Vue Wénkel | |
| Frequenz | 60Hz |
| Lampe Typ | 2 pcsCCFLWithout Driver |
| Signal Interface | CMOS (1 ch, 6-bit) |
| rohs: | |
| Applikatioun | IA |
