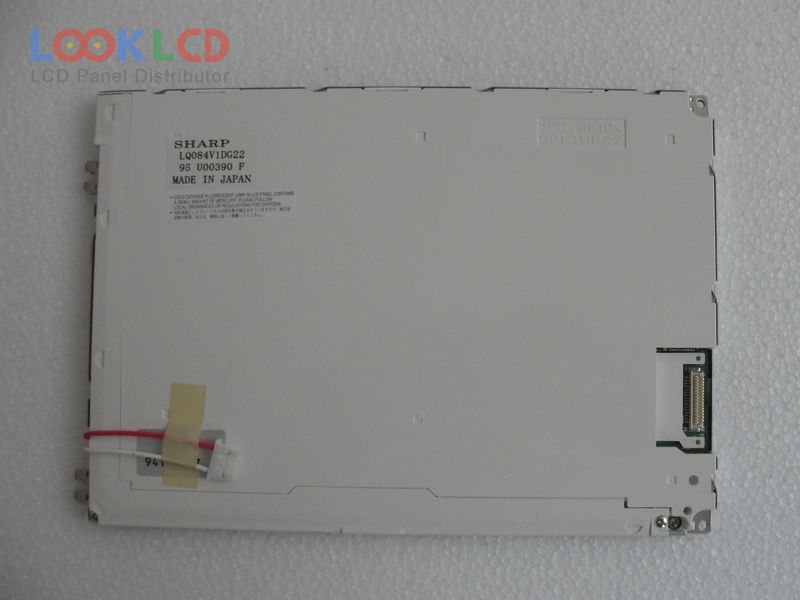

| Part Number | LQ084V1DG22 |
| Mark | SHARP |
| Gréisst | 8.4 |
| Applikatioun | IA |
| Opléisung | 640×480 |
| Zesummesetzung | LCM |
| Hellegkeet | 300 |
| CR | 250:1 |
| Faarwen | 262K |
| Géigeliicht | CCFL |
| Interface | TTL |
| Panel Mark | SHARP |
| Panel Modell | LQ084V1DG22 1 Compatible model |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 8.4 inch |
| Resolutioun | 640(RGB)×480 , VGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 170.88×129.6 mm |
| skizzéieren | 216×152.4 mm |
| Uewerfläch | Antiglare (Haze 28%), Hard coating (3H) |
| Hellegkeet | 300 cd/m² (Typ.) |
| Kontrast Verhältnis | 250:1 (Typ.) |
| weisen Faarwen | 262K (6-bit) |
| Äntwert Zäit | 20/40 (Typ.)(Tr/Td) |
| Vue Wénkel | 55/55/55/40 (Typ.)(CR≥10)(L/R/U/D) |
| Lampe Typ | 1 pcsCCFL |
| Signal Interface | Parallel RGB (1 ch, 6-bit), 31 pins |
| Input Volt | 3.3/5.0V (Typ.)(VCC) |
| Applikatioun | IA |
