| Part Number | LP140WH2-TLB1 |
| Mark | LG Display |
| Gréisst | 14.0 |
| Applikatioun | NBPC |
| Opléisung | 1366×768 |
| Zesummesetzung | LCM |
| Hellegkeet | 200 |
| CR | 350:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | LVDS |
| Panel Mark | LG Display |
| Panel Modell | LP140WH2-TLB1 7 Compatible model |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 14.0 inch |
| Resolutioun | 1366(RGB)×768 , WXGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 309.399×173.952 mm |
| skizzéieren | 320.4×205.1×3.6 mm |
| Form Stil | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| Uewerfläch | Antiglare, Hard coating (3H) |
| Hellegkeet | 200 cd/m² (Typ.) |
| Kontrast Verhältnis | 350:1 (Typ.) |
| weisen Faarwen | 262K (6-bit), CIE193145% |
| Äntwert Zäit | 16 (Typ.)(Tr+Td) |
| Vue Wénkel | 40/40/10/30 (MIn.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | WLEDEmbedded (LED Driver) |

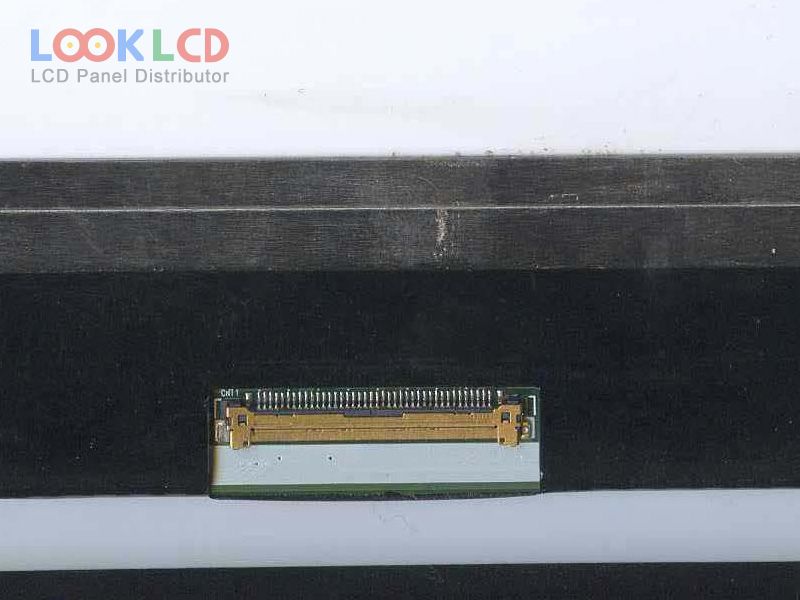

| Signal Interface | LVDS (1 ch, 6-bit), 40 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | NBPC |
| LP140WD1-TLD2 | LG Display | 14.0 | 1600×900 |
| LP140WD1-TLM1 | LG Display | 14.0 | 1600×900 |
| LP140WD2-TLB1 | LG Display | 14.0 | 1600×900 |
| LP140WF1-SPJ1 | LG Display | 14.0 | 1920×1080 |
| LP140WF3-SPD1 | LG Display | 14.0 | 1920×1080 |
| LP140WH1-TLC1 | LG Display | 14.0 | 1366×768 |
| LP140WH1-TLE2 | LG Display | 14.0 | 1366×768 |
| LP140WH1-TPD1 | LG Display | 14.0 | 1366×768 |
| LP140WH2-TLF3 | LG Display | 14.0 | 1366×768 |
| LP140WH2-TLS1 | LG Display | 14.0 | 1366×768 |
| B140RTN02.3 | AUO | 14.0 | 1600×900 |
| B154EW02 V1 | AUO | 15.4 | 1280×800 |
| BT140GW03 V.2 | Innolux | 14.0 | 1366×768 |
| LP154WU1-TLC1 | LG Display | 15.4 | 1920×1200 |
| LP156WH1-TLA1 | LG Display | 15.6 | 1366×768 |
| LTN156AT01-H01 | Samsung | 15.6 | 1366×768 |
| N140BGE-LB2 | Innolux | 14.0 | 1366×768 |
| N140BGN-E42 | Innolux | 14.0 | 1366×768 |
| NT140WHM-N31 | BOE | 14.0 | 1366×768 |
| NT156WHM-N50 | BOE | 15.6 | 1366×768 |
