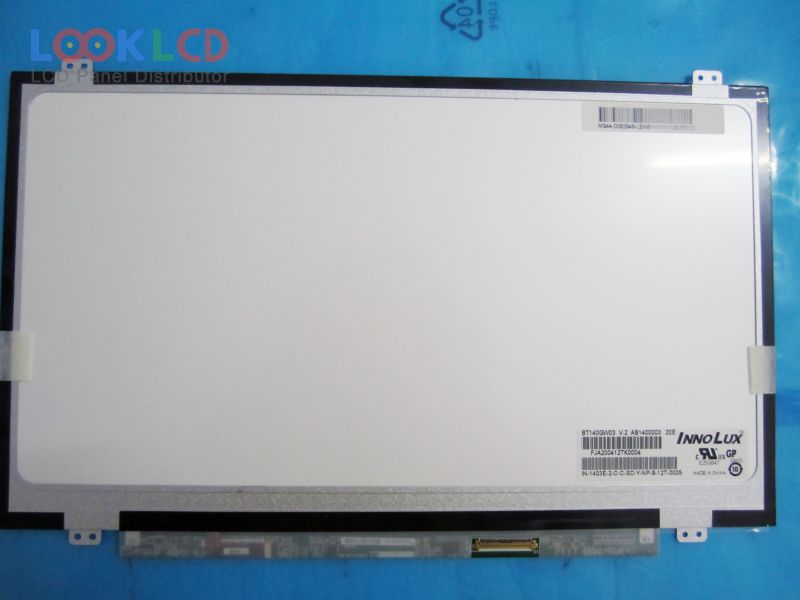

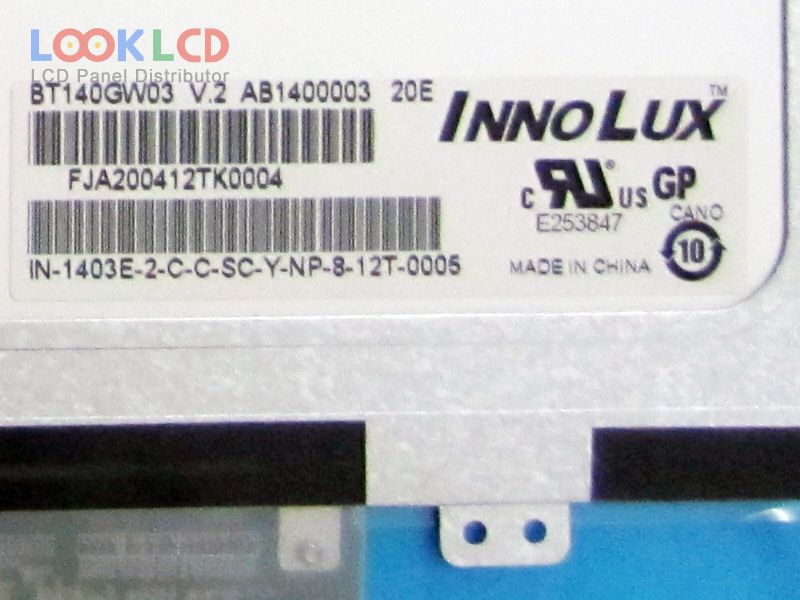

BT140GW03 V.2

BT140GW03 V.2
BT140GW03 V.2
BT140GW03 V.2
BT140GW03 V.2 thumb BT140GW03 V.2 thumb BT140GW03 V.2 thumb
Mark
Innolux
Gréisst
14.0
Applikatioun
NBPC
Opléisung
1366×768
Zesummesetzung
LCM
Hellegkeet
200
CR
600:1
Faarwen
262K
Backlight
WLED
Interface
LVDS
In Stock
1729
Spezifikatioune

Part Number BT140GW03 V.2
MarkInnolux
Gréisst14.0
ApplikatiounNBPC
Opléisung1366×768
ZesummesetzungLCM
Hellegkeet200
CR600:1
Faarwen262K
GéigeliichtWLED
InterfaceLVDS
Panel MarkCHIMEI INNOLUX
Panel ModellBT140GW03 V.2 6 Compatible model
Panel Typ a-Si TFT-LCD , LCM
Panel Gréisst14.0 inch
Resolutioun1366(RGB)×768 , WXGA
Display ModusTN, Normally White, Transmissive
aktiv Beräich309.399×173.952 mm
skizzéieren320.4×205.1×3.6 mm
Form StilFlat (PCBA Flat, Depth 3.4~4.0mm)
UewerflächGlare (Haze 0%), Hard coating (3H)
Hellegkeet200 cd/m² (Typ.)
Kontrast Verhältnis600:1 (Typ.)
weisen Faarwen262K (6-bit), CIE193145%
Äntwert Zäit8 (Typ.)(Tr+Td)
Vue Wénkel45/45/15/30 (Typ.)(CR≥10)(L/R/U/D)
Frequenz60Hz
Lampe Typ9S4PWLEDEmbedded (LED Driver)

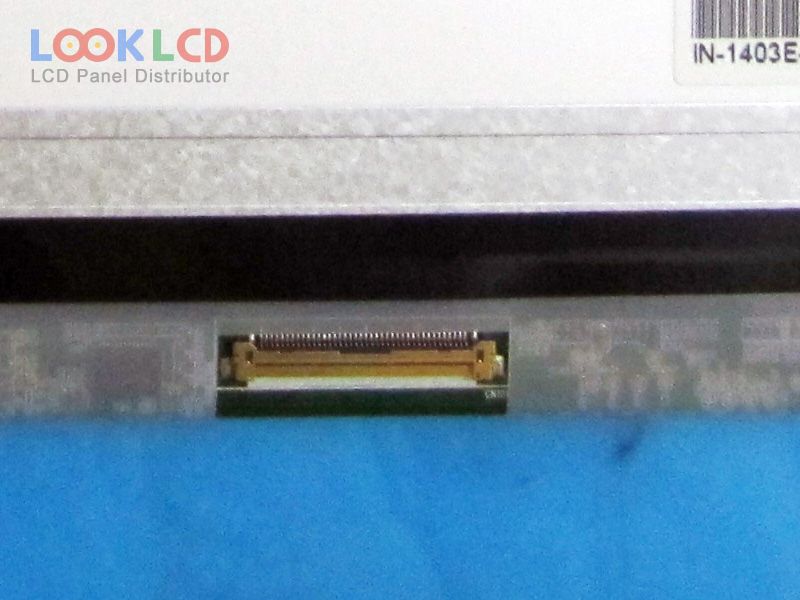

Signal InterfaceLVDS (1 ch, 6-bit), 40 pins
Input Volt3.3V (Typ.)
ApplikatiounNBPC
Famill Modell
BT140GW01 V.0 Innolux 14.0 1366×768
BT140GW01 V.4 Innolux 14.0 1366×768
BT140GW01 V.5 Innolux 14.0 1366×768
BT140GW01 V.A Innolux 14.0 1366×768
BT140GW02 V.0 Innolux 14.0 1366×768
BT140GW02 V.2 Innolux 14.0 1366×768
BT140GW02 V.9 Innolux 14.0 1366×768
BT140GW03 V.2 Innolux 14.0 1366×768
HB140WH1-504 BOE 14.0 1366×768
