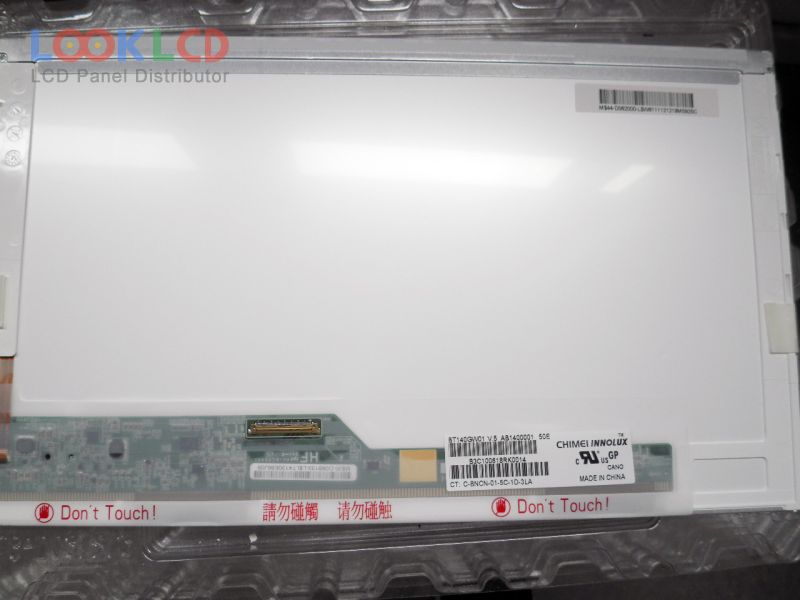

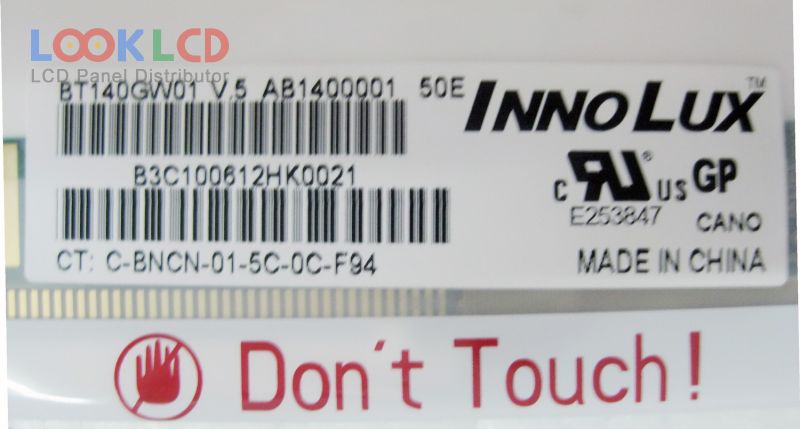

BT140GW01 V.5

BT140GW01 V.5
BT140GW01 V.5
BT140GW01 V.5 thumb BT140GW01 V.5 thumb
Mark
Innolux
Gréisst
14.0
Applikatioun
NBPC
Opléisung
1366×768
Zesummesetzung
LCM
Hellegkeet
200
CR
600:1
Faarwen
262K
Backlight
WLED
Interface
LVDS
In Stock
1542
Spezifikatioune

Part Number BT140GW01 V.5
MarkInnolux
Gréisst14.0
ApplikatiounNBPC
Opléisung1366×768
ZesummesetzungLCM
Hellegkeet200
CR600:1
Faarwen262K
GéigeliichtWLED
InterfaceLVDS
Panel MarkCHIMEI INNOLUX
Panel ModellBT140GW01 V.5 4 Compatible model
Panel Typ a-Si TFT-LCD , LCM
Panel Gréisst14.0 inch
Resolutioun1366(RGB)×768 , WXGA
Display ModusTN, Normally White, Transmissive
aktiv Beräich309.399×173.952 mm
skizzéieren323.5×192×5.2 mm
Form StilWedge (PCBA Bent, Depth ≥5.2mm)
UewerflächGlare (Haze 0%), Hard coating (3H)
Hellegkeet200 cd/m² (Typ.)
Kontrast Verhältnis600:1 (Typ.)
weisen Faarwen262K (6-bit), CIE193145%
Äntwert Zäit8 (Typ.)(Tr+Td)
Vue Wénkel40/40/15/30 (Min.)(CR≥10)(L/R/U/D)
Frequenz60Hz
Lampe TypWLEDEmbedded (LED Driver)
Signal InterfaceLVDS (1 ch, 6-bit), 40 pins
Input Volt3.3V (Typ.)
ApplikatiounNBPC
Famill Modell
B140XTN03.1 AUO 14.0 1366×768
BT140GW01 V.0 Innolux 14.0 1366×768
BT140GW01 V.4 Innolux 14.0 1366×768
BT140GW01 V.5 Innolux 14.0 1366×768
BT140GW01 V.A Innolux 14.0 1366×768
BT140GW02 V.0 Innolux 14.0 1366×768
BT140GW02 V.2 Innolux 14.0 1366×768
BT140GW02 V.9 Innolux 14.0 1366×768
BT140GW03 V.2 Innolux 14.0 1366×768
LP140WF1-SPB1 LG Display 14.0 1920×1080
