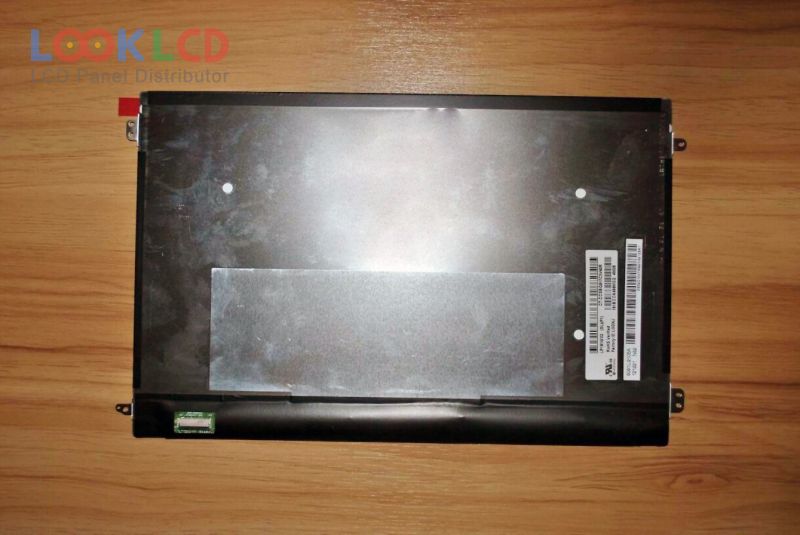

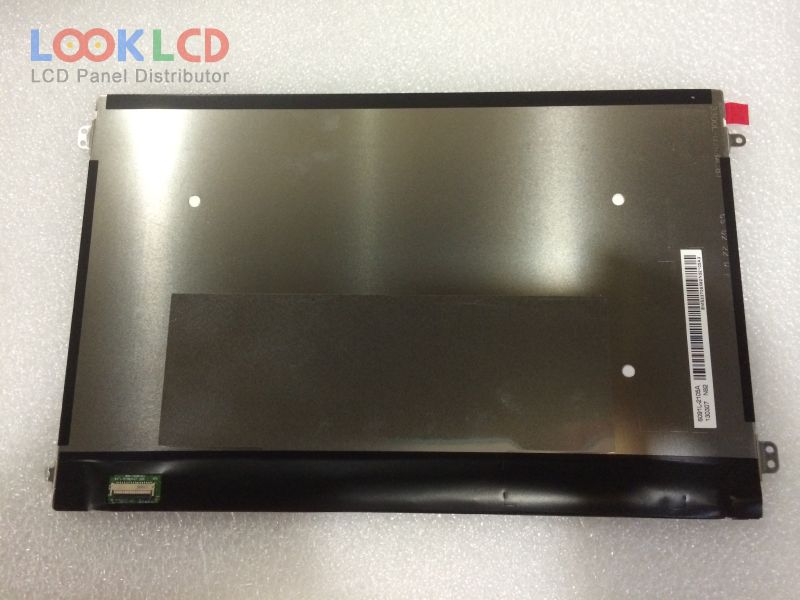

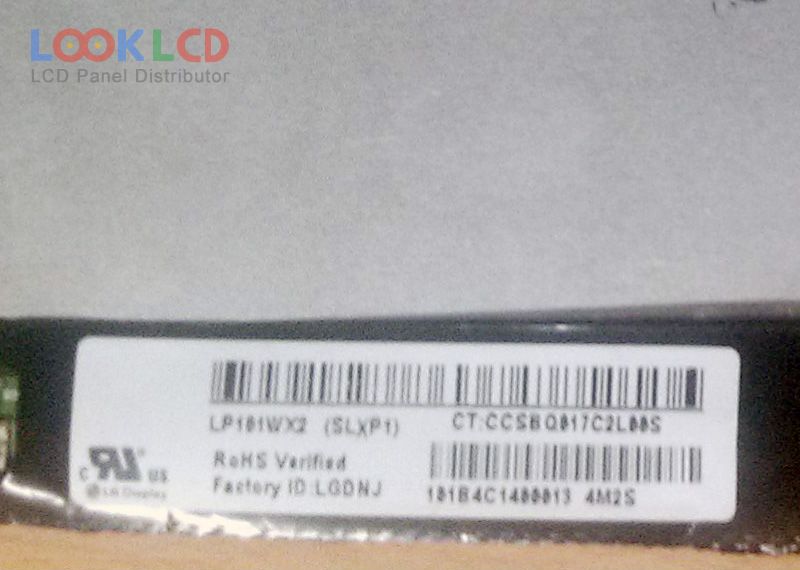

| Part Number | LP101WX2-SLP1 |
| Mark | LG Display |
| Gréisst | 10.1 |
| Applikatioun | PAD |
| Opléisung | 1280×800 |
| Zesummesetzung | LCM |
| Hellegkeet | 400 |
| CR | 500:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | LVDS |
| Panel Mark | LG Display |
| Panel Modell | LP101WX2-SLP1 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 10.1 inch |
| Resolutioun | 1280(RGB)×800 , WXGA |
| Display Modus | IPS, Normally Black, Transmissive |
| aktiv Beräich | 216.96×135.6 mm |
| skizzéieren | 228.6×148.15×4.45 mm |
| Uewerfläch | Glare (Haze 0%) |
| Hellegkeet | 400 cd/m² (Typ.) |
| Kontrast Verhältnis | 500:1 (Min.) |
| weisen Faarwen | 16.7M (6-bit + Hi-FRC) |
| Äntwert Zäit | 35 (Typ.)(Tr/Td) |
| Vue Wénkel | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | WLEDEmbedded (LED Driver) |
| Signal Interface | LVDS (1 ch, 8-bit), 40 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | PAD |
| LP101WH1-TLA2 | LG Display | 10.1 | 1366×768 |
| LP101WH1-TLB1 | LG Display | 10.1 | 1366×768 |
| LP101WH1-TLB5 | LG Display | 10.1 | 1366×768 |
| LP101WH4-SLA6 | LG Display | 10.1 | 1366×768 |
| LP101WH4-SLP2 | LG Display | 10.1 | 1366×768 |
| LP101WS1-TLB1 | LG Display | 10.1 | 1024×576 |
| LP101WS1-TLB2 | LG Display | 10.1 | 1024×576 |
| LP101WS1-TLB3 | LG Display | 10.1 | 1024×576 |
| LP101WSA-TLA1 | LG Display | 10.1 | 1024×600 |
| LP101WSA-TLN1 | LG Display | 10.1 | 1024×600 |
| CLAA070NQ01 XN | CPT | 7.0 | 1024×600 |
| F101NWN7-0 | IVO | 10.1 | 1920×1200 |
| HE070IA-04F | Innolux | 7.0 | 800×1280 |
| HV101WU1-1E3 | HYDIS | 10.1 | 1920×1200 |
| LD070WX3-SL01 | LG Display | 7.0 | 800×1280 |
| LP101WH4-SLAB | LG Display | 10.1 | 1366×768 |
| LP125WH2-SLB1 | LG Display | 12.5 | 1366×768 |
| LSL080AL02-B01 | Samsung | 8.0 | 800×1280 |
| LTL090CL01-002 | Samsung | 9.0 | 1920×1280 |
| VVF07H119A90 | Panasonic | 7.0 | 800×1280 |
