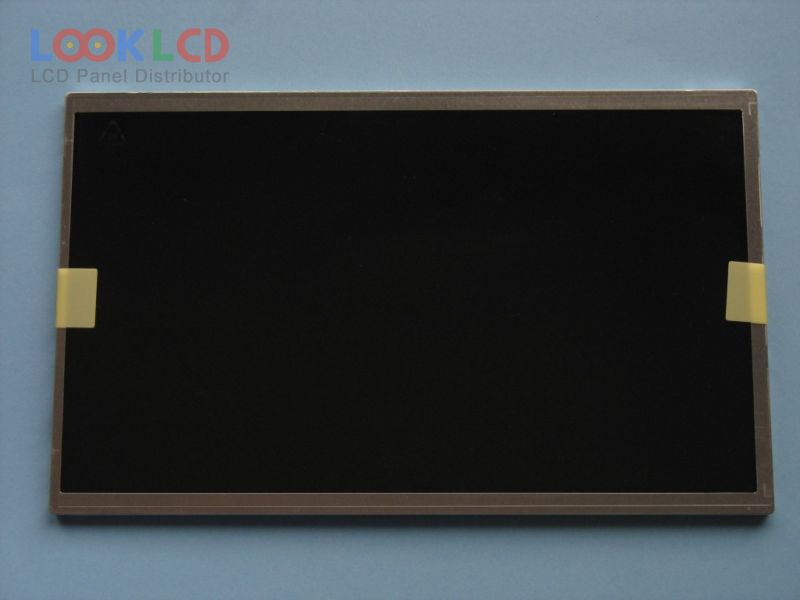

| Part Number | LP101WSA-TLA1 |
| Mark | LG Display |
| Gréisst | 10.1 |
| Applikatioun | NOPC |
| Opléisung | 1024×600 |
| Zesummesetzung | LCM |
| Hellegkeet | 200 |
| CR | 300:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | LVDS |
| Panel Mark | LG.Philips LCD |
| Panel Modell | LP101WSA-TLA1 13 Compatible model |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 10.1 inch |
| Resolutioun | 1024(RGB)×600 , WSVGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 222.72×125.28 mm |
| skizzéieren | 235×143×5.2 mm |
| Form Stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Uewerfläch | Glare (Haze 0%) |
| Hellegkeet | 200 cd/m² (Typ.) |
| Kontrast Verhältnis | 300:1 (Min.) |
| weisen Faarwen | 262K (6-bit), CIE193145% |
| Äntwert Zäit | 16 (Typ.)(Tr+Td) |
| Vue Wénkel | 30/30/10/20 (Min.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | WLEDEmbedded (LED Driver) |
| Signal Interface | LVDS (1 ch, 6-bit), 40 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | NOPC |
