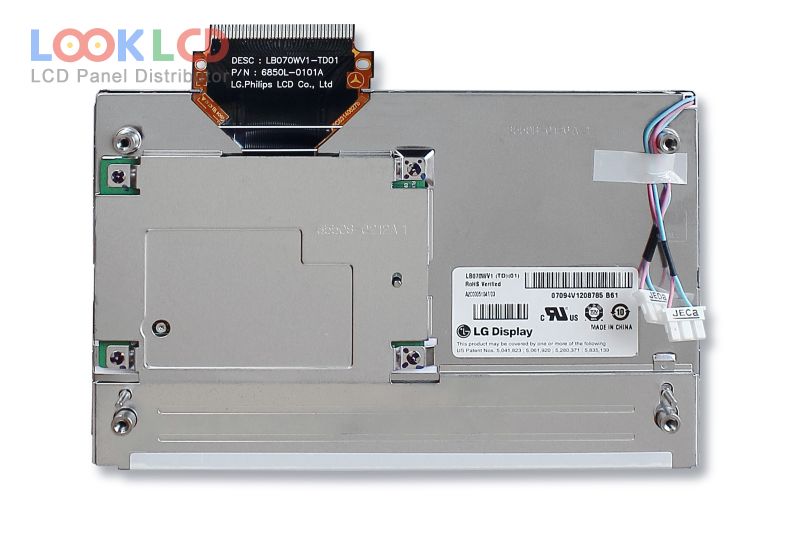

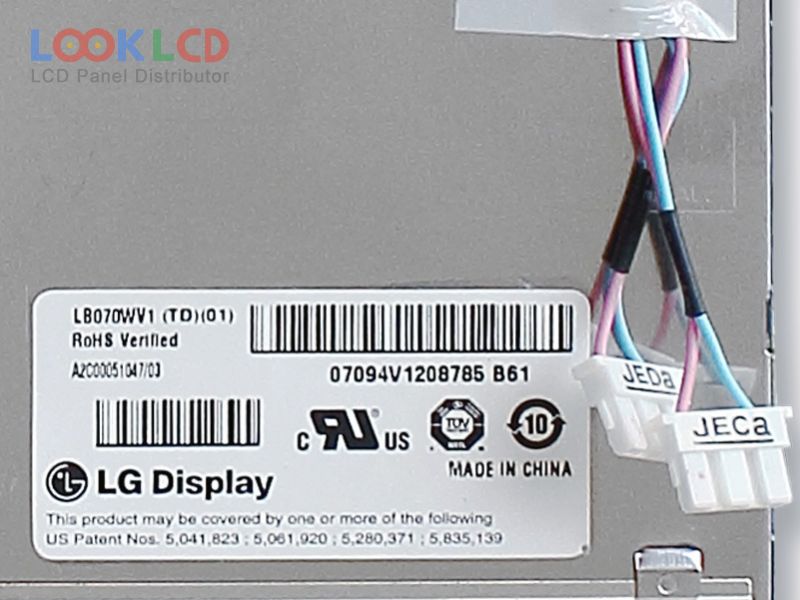

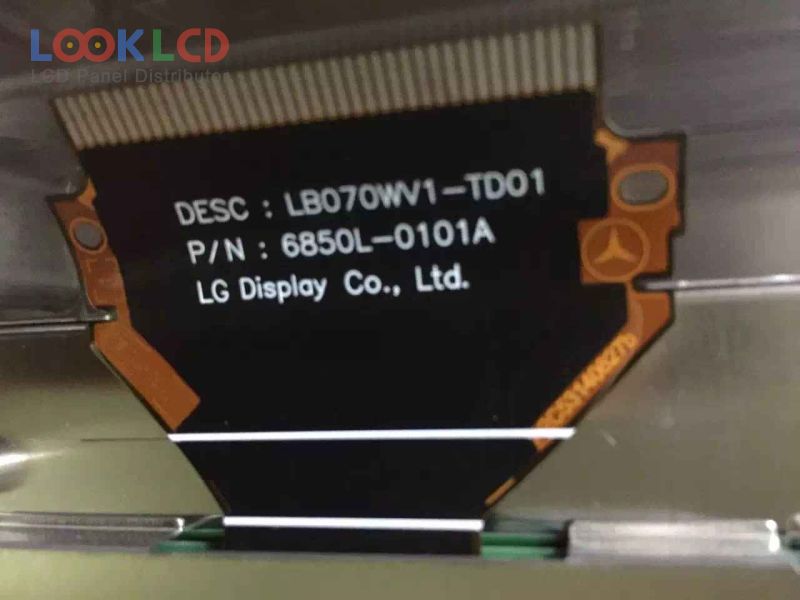

| Part Number | LB070WV1-TD01 |
| Mark | LG Display |
| Gréisst | 7.0 |
| Applikatioun | CNS |
| Opléisung | 800×480 |
| Zesummesetzung | LCM |
| Hellegkeet | 600 |
| CR | |
| Faarwen | 262K |
| Géigeliicht | CCFL |
| Interface | TTL |
| Panel Mark | LG.Philips LCD |
| Panel Modell | LB070WV1-TD01 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 7.0 inch |
| Resolutioun | 800(RGB)×480 , WVGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 152.4×91.44 mm |
| skizzéieren | 170×109.6×17.3 mm |
| Uewerfläch | Antiglare |
| Hellegkeet | 600 cd/m² (Min.) |
| Kontrast Verhältnis | |
| weisen Faarwen | 262K (6-bit), CIE193145% |
| Äntwert Zäit | 10/40 (Typ.)(Tr/Td) |
| Vue Wénkel | 70/70/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 2 pcsCCFLWithout Driver |
| Signal Interface | Parallel RGB (1 ch, 6-bit), 40 pins |
| Input Volt | 3.3V (Typ.)(VCC) |
| Applikatioun | CNS |
