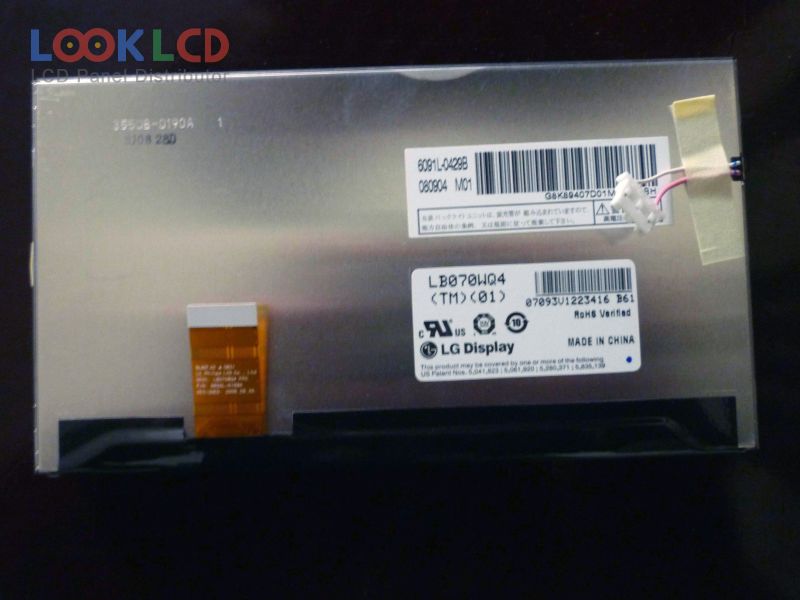

LB070WQ4-TM01

LB070WQ4-TM01
LB070WQ4-TM01 thumb
Mark
LG Display
Gréisst
7.0
Applikatioun
CNS
Opléisung
480×234
Zesummesetzung
LCM
Hellegkeet
450
CR
400:1
Faarwen
Full color
Backlight
CCFL
Interface
Analog
In Stock
14922
Spezifikatioune

Part Number LB070WQ4-TM01
MarkLG Display
Gréisst7.0
ApplikatiounCNS
Opléisung480×234
ZesummesetzungLCM
Hellegkeet450
CR400:1
FaarwenFull color
GéigeliichtCCFL
InterfaceAnalog
Panel MarkLG.Philips LCD
Panel ModellLB070WQ4-TM01
Panel Typ a-Si TFT-LCD , LCM
Panel Gréisst7.0 inch
Resolutioun480(RGB)×234
Display ModusTN, Normally White, Transmissive
aktiv Beräich156.24×82.368 mm
skizzéieren167×93×7.8 mm
UewerflächAntiglare
Hellegkeet450 cd/m² (Typ.)
Kontrast Verhältnis400:1 (Typ.)
weisen FaarwenFull color , CIE193145%
Äntwert Zäit50/75 (Max.)(Tr/Td)
Vue Wénkel60/60/50/60 (Typ.)(CR≥10)(L/R/U/D)
Lampe Typ1 pcsCCFLWithout Driver
Signal InterfaceTFT Specific Analog RGB, 30 pins
Input Volt3.3/5.0/18.5/-12.0V (Typ.)(VDD1/VDD2/VGH/VGL)
ApplikatiounCNS
Famill Modell
LB070WQ4-TM01 LG Display 7.0 480×234
LB070WV1-TD01 LG Display 7.0 800×480
LB070WV1-TD04 LG Display 7.0 800×480
LB070WV1-TD12 LG Display 7.0 800×480
LB070WV1-TD17 LG Display 7.0 800×480
LB070WV3-SD01 LG Display 7.0 800×480
LB070WV3-SD02 LG Display 7.0 800×480
LB070WV6-TD06 LG Display 7.0 800×480
LB070WV6-TD08 LG Display 7.0 800×480
LB070WV7-TL01 LG Display 7.0 800×480
