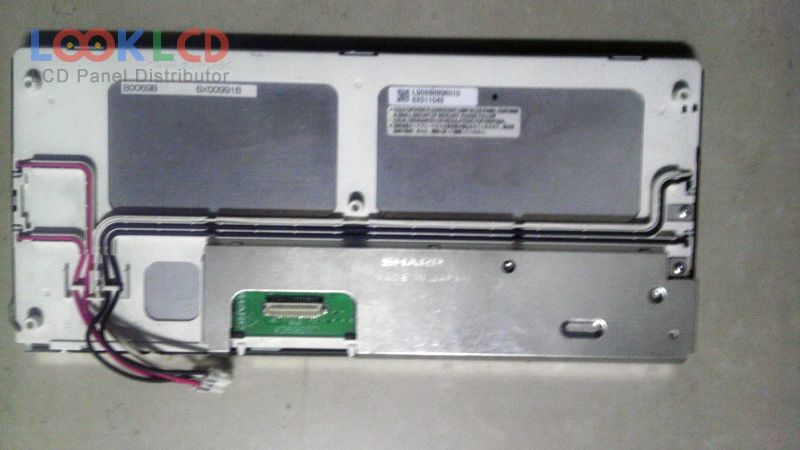

| Part Number | LQ088H9DR01U |
| Mark | SHARP |
| Gréisst | 8.8 |
| Applikatioun | CNS |
| Opléisung | 640×240 |
| Zesummesetzung | LCM |
| Hellegkeet | 220 |
| CR | |
| Faarwen | 262K |
| Géigeliicht | CCFL |
| Interface | TTL |
| Panel Mark | SHARP |
| Panel Modell | LQ088H9DR01U |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 8.8 inch |
| Resolutioun | 640(RGB)×240 , HVGA |
| Display Modus | TN, Normally White, Transflective |
| aktiv Beräich | 209.28×78.48 mm |
| skizzéieren | 231.6×103.6 mm |
| Uewerfläch | |
| Hellegkeet | 220 cd/m² (Typ.) |
| Kontrast Verhältnis | |
| weisen Faarwen | 262K (6-bit) |
| Äntwert Zäit | |
| Vue Wénkel | |
| Lampe Typ | 2 pcsCCFL |
| Signal Interface | Parallel RGB (1 ch, 6-bit), 31 pins |
| rohs: | |
| Applikatioun | CNS |
