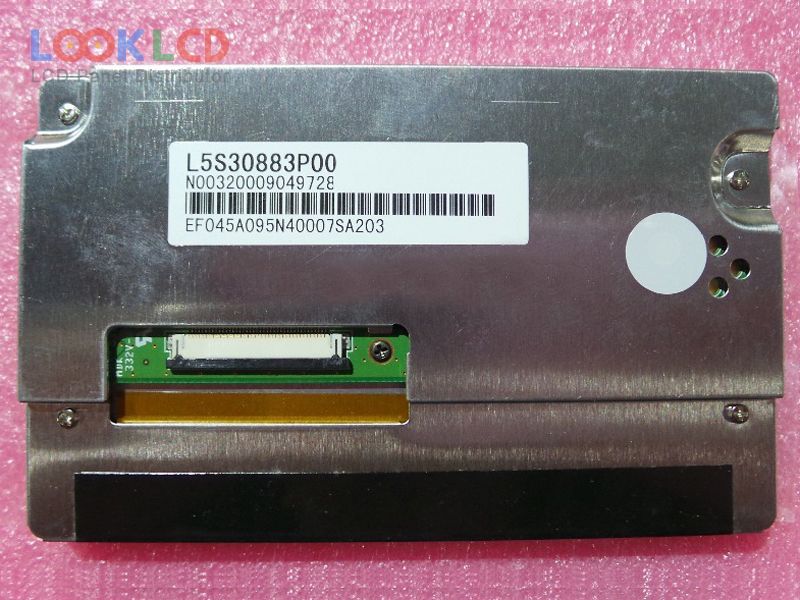

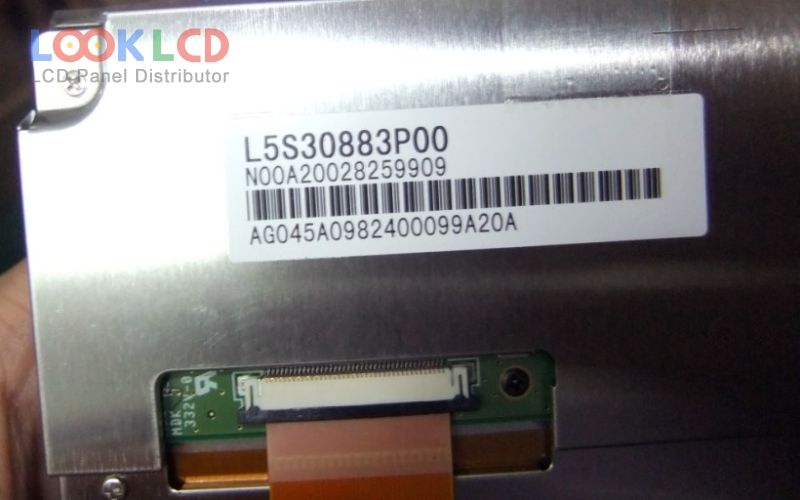

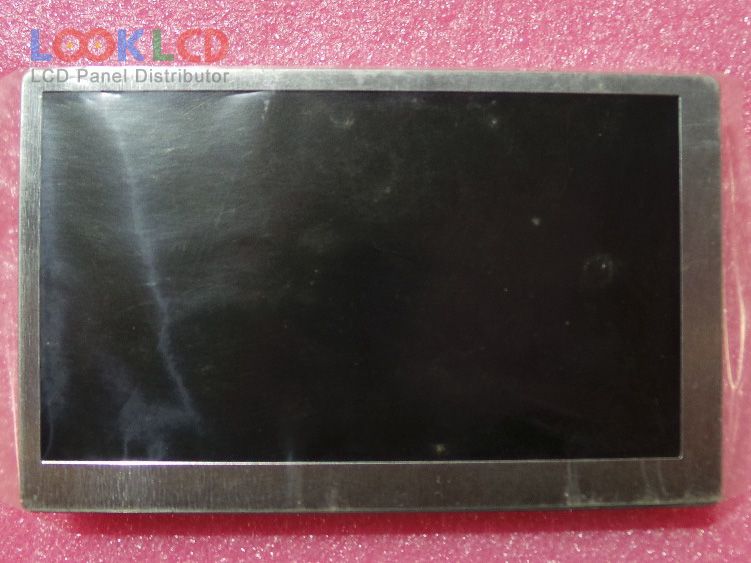

| Part Number | L5S30883P00 |
| Mark | SANYO |
| Gréisst | 4.5 |
| Applikatioun | CNS |
| Opléisung | 480×240 |
| Zesummesetzung | LCM |
| Hellegkeet | 400 |
| CR | 300:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | TTL |
| Panel Mark | SANYO |
| Panel Modell | L5S30883P00 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 4.5 inch |
| Resolutioun | 480(RGB)×240 , WQVGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 99.36×56.04 mm |
| skizzéieren | 112.7×70.2 mm |
| Uewerfläch | Glare (Haze 0%) |
| Hellegkeet | 400 cd/m² (Typ.) |
| Kontrast Verhältnis | 300:1 (Typ.) |
| weisen Faarwen | 262K (6-bit) |
| Äntwert Zäit | 10/20 (Typ.)(Tr/Td) |
| Vue Wénkel | 55/55/45/55 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | WLEDEmbedded (LED Driver) |
| Signal Interface | Parallel RGB (1 ch, 6-bit), 40 pins |
| Input Volt | 3.3V (Typ.) |
| rohs: | |
| Applikatioun | CNS |
