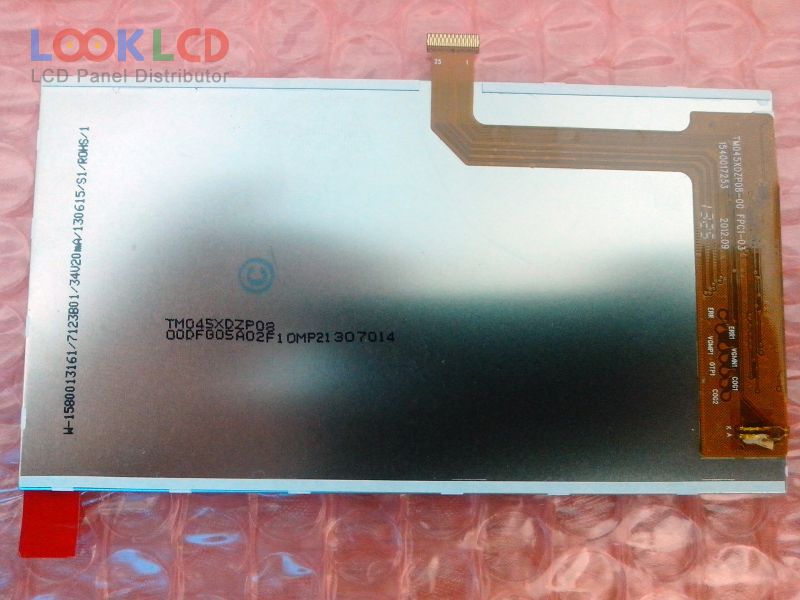

| Part Number | TM045XDZP08 |
| Mark | Tianma |
| Gréisst | 4.5 |
| Applikatioun | MPH |
| Opléisung | 540×960 |
| Zesummesetzung | LCM |
| Hellegkeet | 350 |
| CR | 800:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | MIPI |
| Panel Mark | TIANMA |
| Panel Modell | TM045XDZP08 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 4.5 inch |
| Resolutioun | 540(RGB)×960 , qHD |
| Display Modus | IPS, Normally Black, Transmissive |
| aktiv Beräich | 55.485×98.64 mm |
| skizzéieren | 60.71×109.1 mm |
| Uewerfläch | |
| Hellegkeet | 350 cd/m² (Typ.) |
| Kontrast Verhältnis | 800:1 (Typ.) |
| weisen Faarwen | 16.7M (8-bit), CIE193170% |
| Äntwert Zäit | 25 (Typ.)(Tr+Td) |
| Vue Wénkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 10S1PWLEDWithout Driver |
| Signal Interface | MIPI (2 data lanes), 25 pins |
| Input Volt | 1.8/2.8V (Typ.)(IOVCC/VDD) |
| Applikatioun | MPH |
