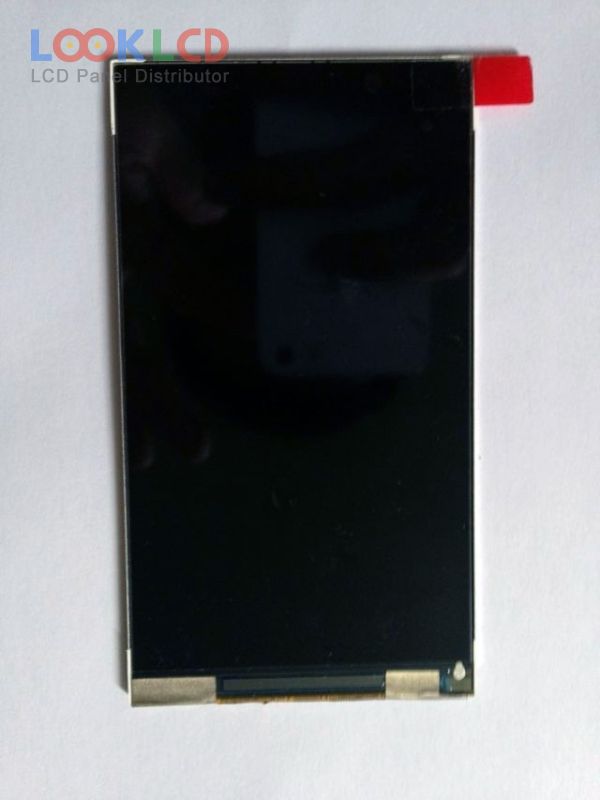

| Part Number | PJ045IC-01F |
| Mark | Innolux |
| Gréisst | 4.5 |
| Applikatioun | MPH |
| Opléisung | 720×1280 |
| Zesummesetzung | LCM |
| Hellegkeet | 380 |
| CR | 800:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | MIPI |
| Panel Mark | CHIMEI INNOLUX |
| Panel Modell | PJ045IC-01F |
| Panel Typ | LTPS TFT-LCD , LCM |
| Panel Gréisst | 4.5 inch |
| Resolutioun | 720(RGB)×1280 , WXGA |
| Display Modus | IPS, Normally Black, Transmissive |
| aktiv Beräich | 55.512×98.688 mm |
| skizzéieren | 60.04×108.72 mm |
| Uewerfläch | |
| Hellegkeet | 380 cd/m² (Typ.) |
| Kontrast Verhältnis | 800:1 (Typ.) |
| weisen Faarwen | 16.7M (8-bit), CIE193170% |
| Äntwert Zäit | 25 (Typ.)(Tr+Td) |
| Vue Wénkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 5S2PWLEDWithout Driver |
| Signal Interface | MIPI (4 data lanes), 30 pins |
| Input Volt | 1.8/2.8V (Typ.)(VDDIO/VCI) |
| Applikatioun | MPH |
