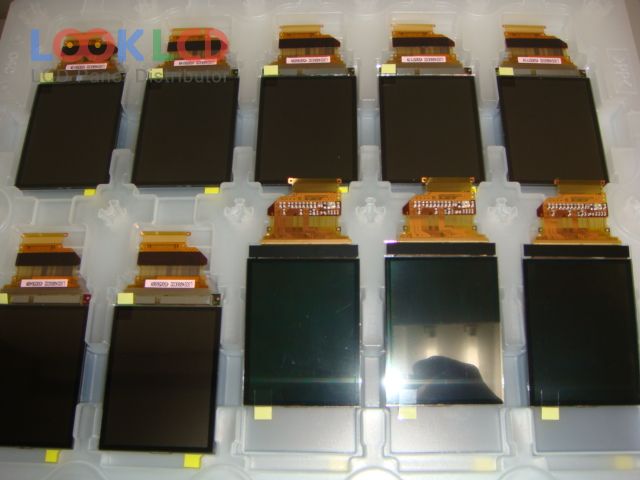

| Part Number | LS024Q8UC02 |
| Mark | SHARP |
| Gréisst | 2.4 |
| Applikatioun | MPH |
| Opléisung | 240×320 |
| Zesummesetzung | CELL |
| Hellegkeet | 0 |
| CR | 90:1 |
| Faarwen | 65K |
| Géigeliicht | No B/L |
| Interface | CPU |
| Panel Mark | SHARP |
| Panel Modell | LS024Q8UC02 |
| Panel Typ | CG-Silicon , CELL |
| Panel Gréisst | 2.4 inch |
| Resolutioun | 240(RGB)×320 , QVGA |
| Display Modus | TN, Normally White, Transflective |
| aktiv Beräich | 36.72×48.96 mm |
| skizzéieren | 41.7×83.65×1.75 mm |
| Uewerfläch | Hard coating |
| transmissivitéit | 8.2% (Typ.)(with Polarizer) |
| Kontrast Verhältnis | 90:1 (Typ.)(Transmissive)7:1 (Typ.)(Reflective) |
| weisen Faarwen | 65K , CIE193159% |
| Äntwert Zäit | 60 (Typ.)(Tr+Td) |
| Vue Wénkel | 35/35/40/30 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Signal Interface | CPU, 36 pins |
| Input Volt | 2.85V (Typ.) |
| Applikatioun | MPH |
