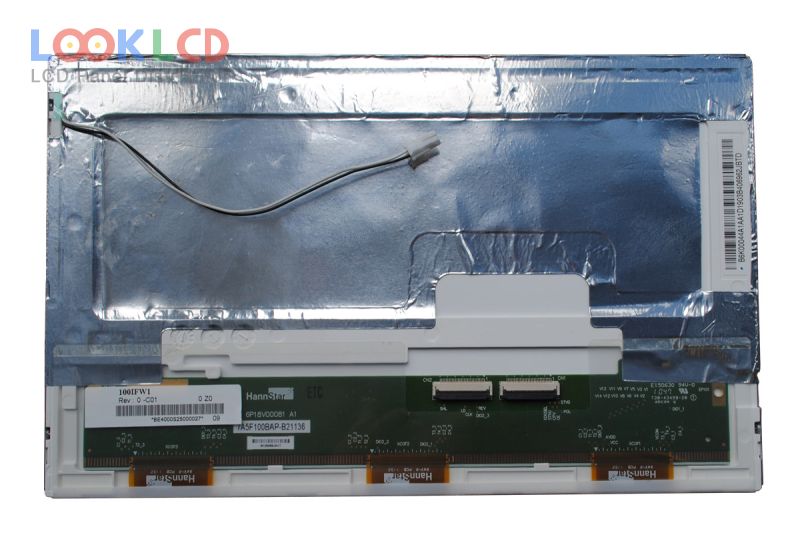

| Part Number | HSD100IFW1-C01 |
| Mark | HannStar |
| Gréisst | 10.1 |
| Applikatioun | DPF |
| Opléisung | 1024×600 |
| Zesummesetzung | LCM |
| Hellegkeet | 250 |
| CR | 500:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | TTL |
| Panel Mark | HannStar |
| Panel Modell | HSD100IFW1-C01 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 10.1 inch |
| Resolutioun | 1024(RGB)×600 , WSVGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 220.416×129.15 mm |
| skizzéieren | 235×145.8 mm |
| Uewerfläch | Antiglare, Hard coating (3H) |
| Hellegkeet | 250 cd/m² (Typ.) |
| Kontrast Verhältnis | 500:1 (Typ.) |
| weisen Faarwen | 262K (6-bit), CIE193147% |
| Äntwert Zäit | 5/20 (Typ.)(Tr/Td) |
| Vue Wénkel | 70/70/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| Lampe Typ | 3S10PWLEDWithout Driver |
| Signal Interface | TTL (1 ch, 6-bit), 60 pins |
| Input Volt | 3.3/9.48/15/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
| Applikatioun | DPF |
