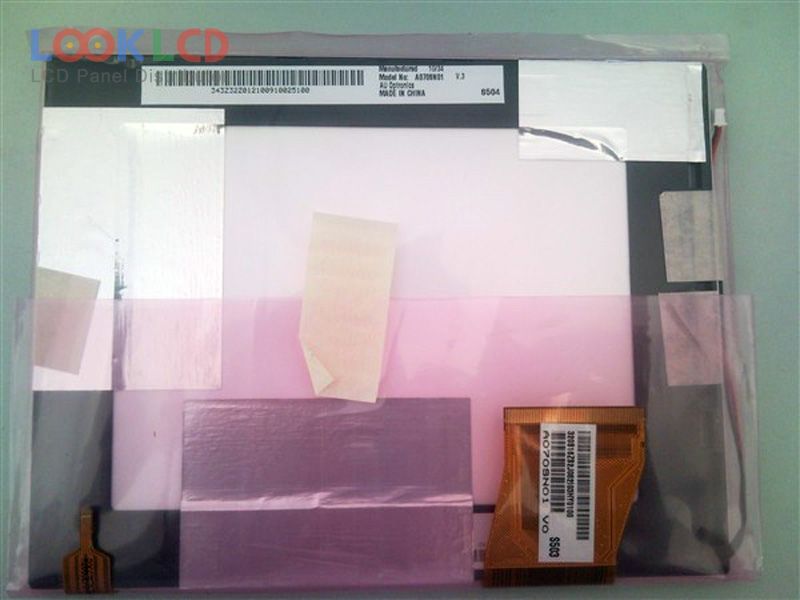

| Part Number | A070SN01 V3 |
| Mark | AUO |
| Gréisst | 7.0 |
| Applikatioun | DPF |
| Opléisung | 800×600 |
| Zesummesetzung | LCM |
| Hellegkeet | 200 |
| CR | 500:1 |
| Faarwen | 262K/16.7M |
| Géigeliicht | WLED |
| Interface | TTL |
| Panel Mark | AUO |
| Panel Modell | A070SN01 V3 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 7.0 inch |
| Resolutioun | 800(RGB)×600 , SVGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 141.6×106.2 mm |
| skizzéieren | 154×119.2×6.74 mm |
| Uewerfläch | Antiglare (Haze 8%), Hard coating (3H) |
| Hellegkeet | 200 cd/m² (Typ.) |
| Kontrast Verhältnis | 500:1 (Typ.) |
| weisen Faarwen | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193150% |
| Äntwert Zäit | 3/13 (Typ.)(Tr/Td) |
| Vue Wénkel | 70/70/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| Lampe Typ | 3S6PWLEDWithout Driver |
| Signal Interface | TTL (1 ch, 6/8-bit), 60 pins |
| Input Volt | 3.3/11.6/15/-7V (Typ.)(VDD/AVDD/VGH/VGL) |
| Applikatioun | DPF |
