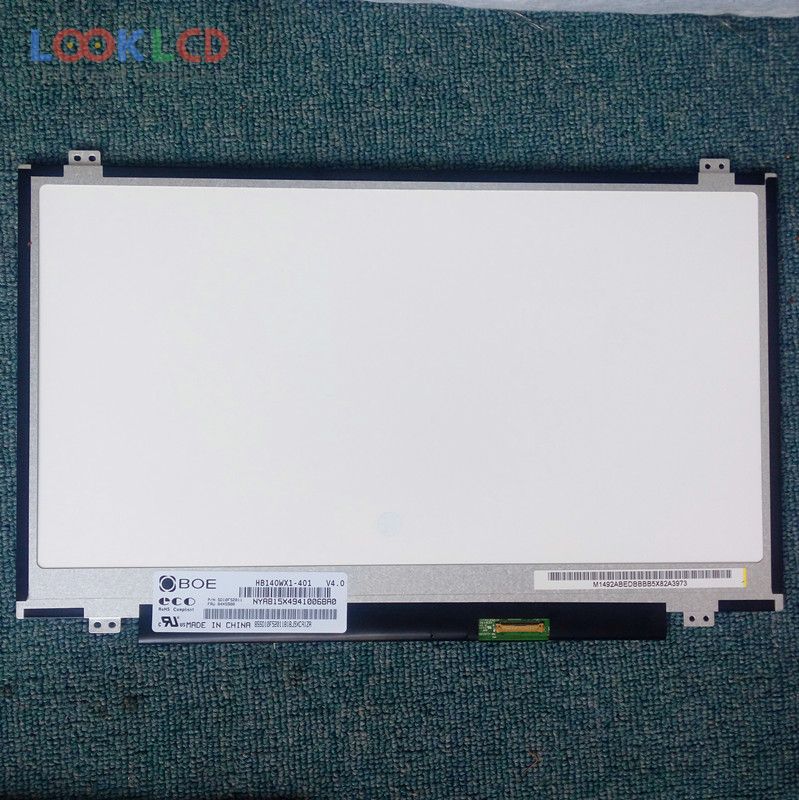

| Part Number | HB140WX1-401 |
| Mark | BOE |
| Gréisst | 14.0 |
| Applikatioun | NBPC |
| Opléisung | 1366×768 |
| Zesummesetzung | LCM |
| Hellegkeet | 200 |
| CR | 500:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | eDP |

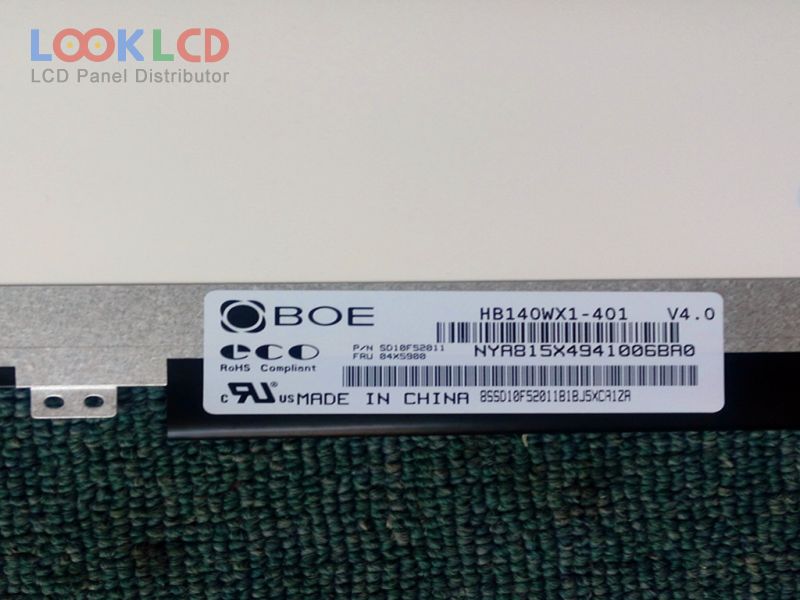

| Panel Mark | BOE |
| Panel Modell | HB140WX1-401 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 14.0 inch |
| Resolutioun | 1366(RGB)×768 , WXGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 309.399×173.952 mm |
| skizzéieren | 320.9×187.6×3.6 mm |
| Form Stil | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| Uewerfläch | Antiglare, Hard coating (3H) |
| Hellegkeet | 200 cd/m² (Typ.) |
| Kontrast Verhältnis | 500:1 (Typ.) |
| weisen Faarwen | 262K (6-bit), CIE193145% |
| Äntwert Zäit | 12 (Typ.)(Tr+Td) |
| Vue Wénkel | 45/45/20/40 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 9S4PWLEDEmbedded (LED Driver) |
| Signal Interface | eDP (1 Lane), 30 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | NBPC |
