LG Display LP133WH2-TLHA Dateblat, Spezifizéierung, Aktien, Applikatioun www.looklcd-lu.com
LookLCD LookLCD

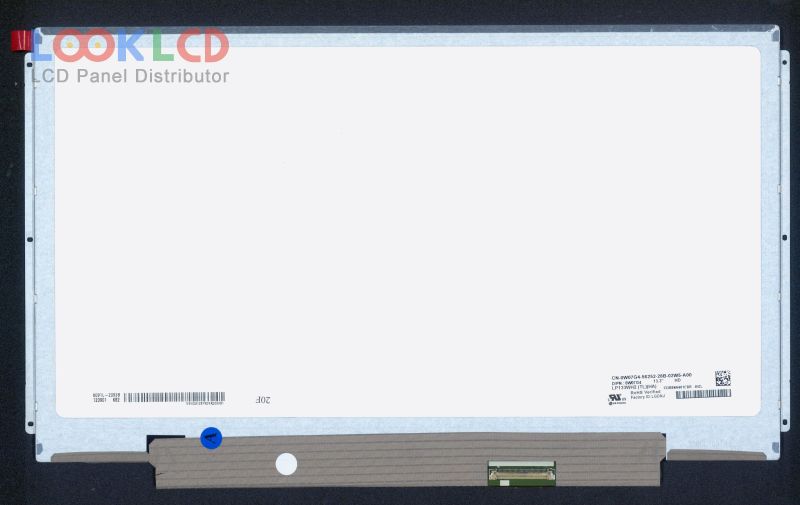

LP133WH2-TLHA

LP133WH2-TLHA
LP133WH2-TLHA thumb
Mark
LG Display
Gréisst
13.3
Applikatioun
NBPC
Opléisung
1366×768
Zesummesetzung
LCM
Hellegkeet
200
CR
350:1
Faarwen
262K
Backlight
WLED
Interface
LVDS
In Stock
82
Spezifikatioune

Part Number LP133WH2-TLHA
MarkLG Display
Gréisst13.3
ApplikatiounNBPC
Opléisung1366×768
ZesummesetzungLCM
Hellegkeet200
CR350:1
Faarwen262K
GéigeliichtWLED
InterfaceLVDS
Panel MarkLG Display
Panel ModellLP133WH2-TLHA
Panel Typ a-Si TFT-LCD , LCM
Panel Gréisst13.3 inch
Resolutioun1366(RGB)×768 , WXGA
Display ModusTN, Normally White, Transmissive
aktiv Beräich293.42×164.97 mm
skizzéieren306.3×177.7×3.8 mm
Form StilFlat (PCBA Flat, Depth 3.4~4.0mm)
UewerflächAntiglare
Hellegkeet200 cd/m² (Typ.)
Kontrast Verhältnis350:1 (Typ.)
weisen Faarwen262K (6-bit), CIE193145%
Äntwert Zäit16 (Typ.)(Tr+Td)
Vue Wénkel40/40/10/30 (Min.)(CR≥10)(L/R/U/D)
Frequenz60Hz
Lampe Typ4 stringsWLEDEmbedded (LED Driver)
Signal InterfaceLVDS (1 ch, 6-bit), 40 pins
Input Volt3.3V (Typ.)
ApplikatiounNBPC
Famill Modell
LP133WF1-SPA1 LG Display 13.3 1920×1080
LP133WH1-TLC1 LG Display 13.3 1366×768
LP133WH2-SPA2 LG Display 13.3 1366×768
LP133WH2-TLB2 LG Display 13.3 1366×768
LP133WH2-TLL2 LG Display 13.3 1366×768
LP133WH2-TLM4 LG Display 13.3 1366×768
LP133WH2-TLN4 LG Display 13.3 1366×768
LP133WX1-TLB1 LG Display 13.3 1280×800
LP133WX2-TLD1 LG Display 13.3 1280×800
LP133WX3-TLA2 LG Display 13.3 1280×800
