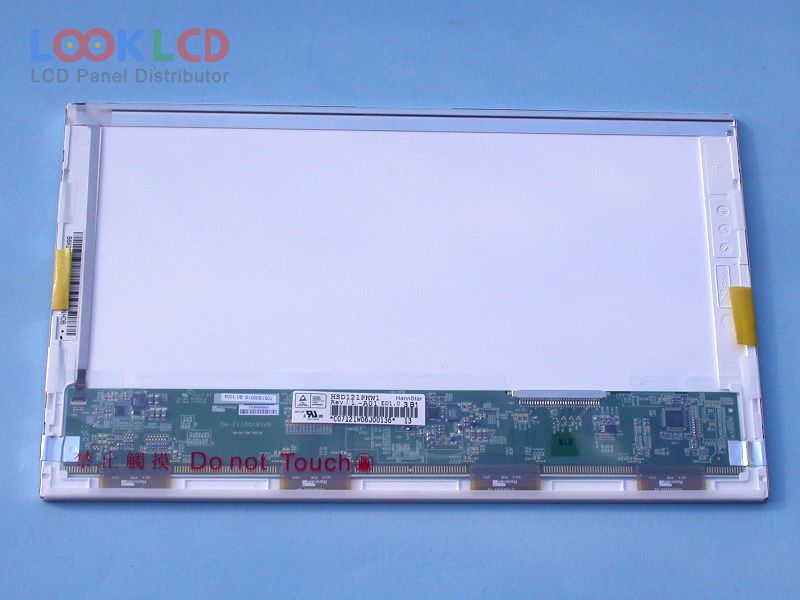

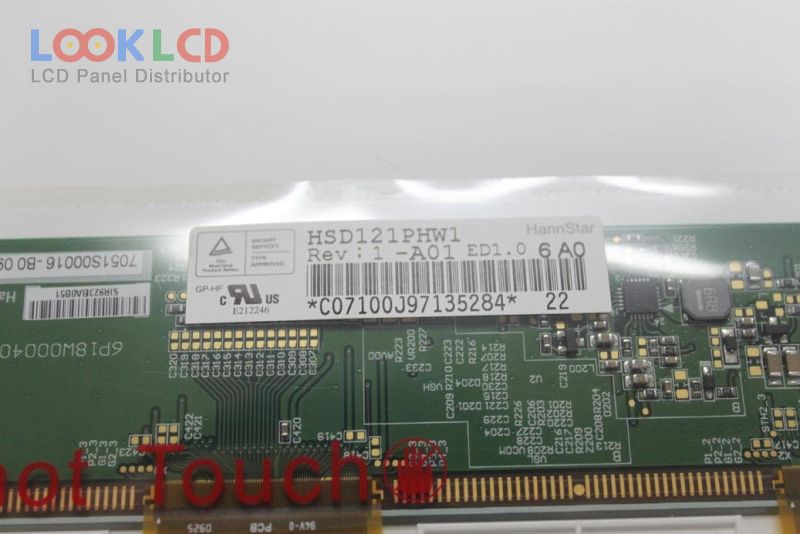

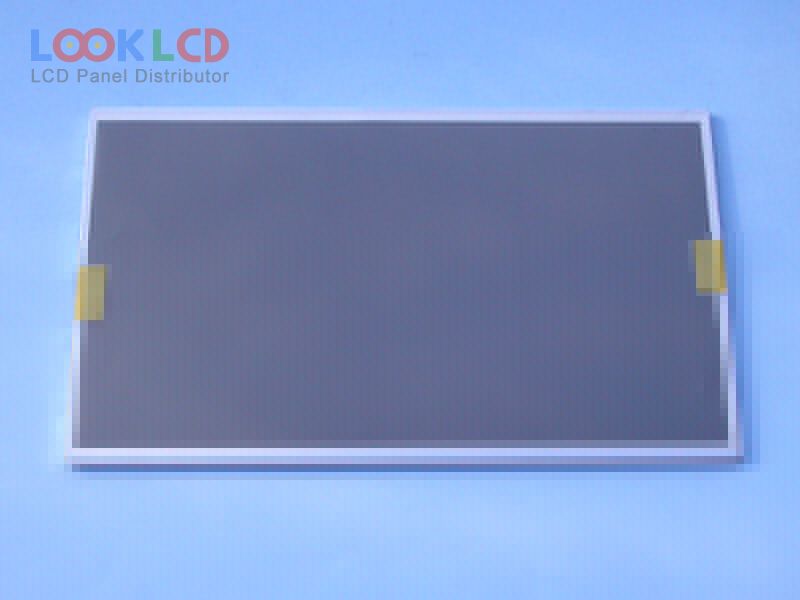

| Part Number | HSD121PHW1-A01 |
| Mark | HannStar |
| Gréisst | 12.1 |
| Applikatioun | NBPC |
| Opléisung | 1366×768 |
| Zesummesetzung | LCM |
| Hellegkeet | 200 |
| CR | 500:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | LVDS |
| Panel Mark | HannStar |
| Panel Modell | HSD121PHW1-A01 1 Compatible model |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 12.1 inch |
| Resolutioun | 1366(RGB)×768 , WXGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 268.01×150.68 mm |
| skizzéieren | 279×167.2×5.1 mm |
| Form Stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Uewerfläch | Glare (Haze 0%), Hard coating (3H) |
| Hellegkeet | 200 cd/m² (Typ.) |
| Kontrast Verhältnis | 500:1 (Typ.) |
| weisen Faarwen | 262K (6-bit), CIE193150% |
| Äntwert Zäit | 3/9 (Typ.)(Tr/Td) |
| Vue Wénkel | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | WLEDEmbedded (LED Driver) |
| Signal Interface | LVDS (1 ch, 6-bit), 30 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | NBPC |
