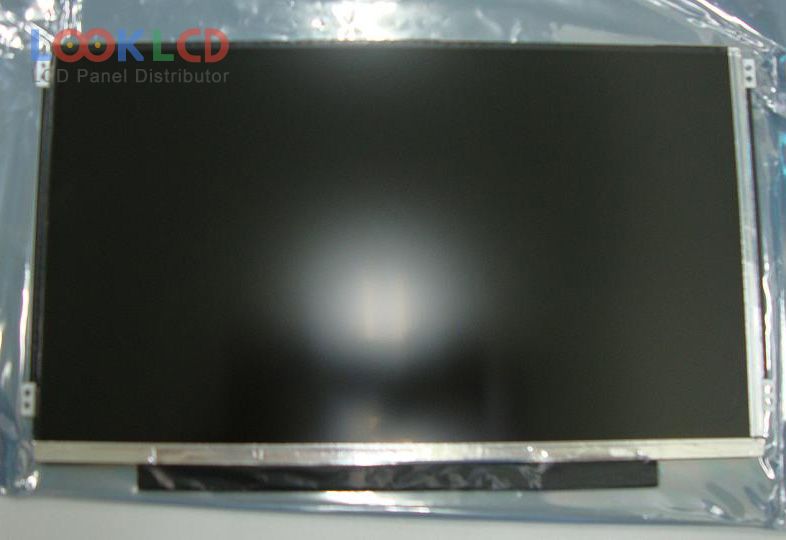

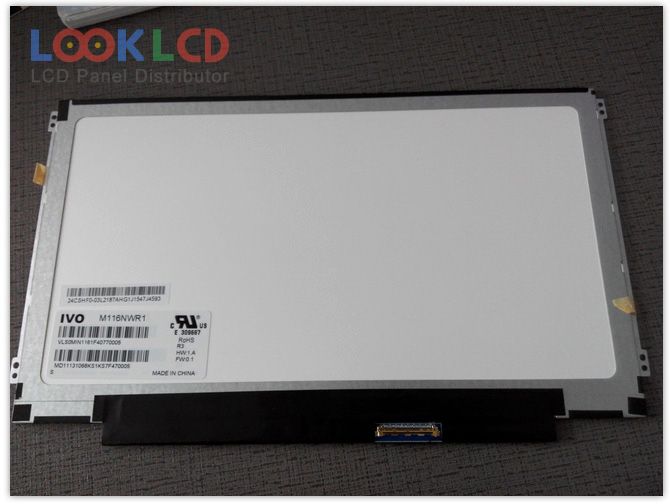

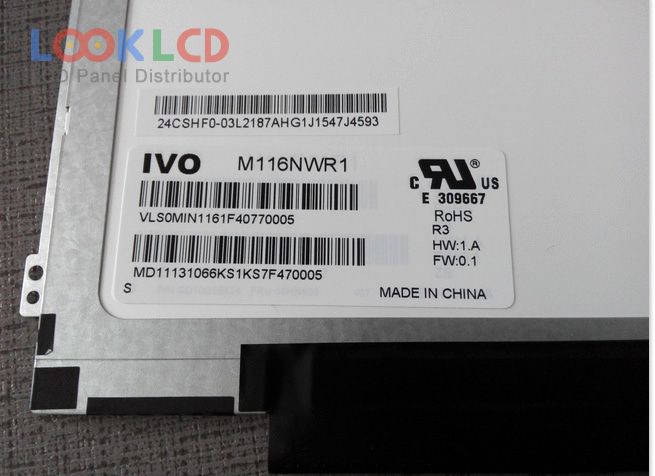

| Part Number | M116NWR1 R3 |
| Mark | IVO |
| Gréisst | 11.6 |
| Applikatioun | NBPC |
| Opléisung | 1366×768 |
| Zesummesetzung | LCM |
| Hellegkeet | 200 |
| CR | 500:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | LVDS |
| Panel Mark | IVO |
| Panel Modell | M116NWR1 R3 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 11.6 inch |
| Resolutioun | 1366(RGB)×768 , WXGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 256.125×144 mm |
| skizzéieren | 278×167×3.6 mm |
| Form Stil | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| Uewerfläch | Antiglare |
| Hellegkeet | 200 cd/m² (Typ.) |
| Kontrast Verhältnis | 500:1 (Typ.) |
| weisen Faarwen | 262K (6-bit), CIE193145% |
| Äntwert Zäit | 3.5/6.5 (Typ.)(Tr/Td) |
| Vue Wénkel | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | WLEDEmbedded (LED Driver) |
| Signal Interface | LVDS (1 ch, 6-bit), 40 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | NBPC |
| B116XAN01.0 | AUO | 11.6 | 1366×768 |
| B116XW01 V0 | AUO | 11.6 | 1366×768 |
| LP116WH6-SPA2 | LG Display | 11.6 | 1366×768 |
| LTN116AT07-B01 | Samsung | 11.6 | 1366×768 |
| M116NWR1 R0 | IVO | 11.6 | 1366×768 |
| M116NWR1 R1 | IVO | 11.6 | 1366×768 |
| M116NWR1 R3 | IVO | 11.6 | 1366×768 |
| M116NWR1 R7 | IVO | 11.6 | 1366×768 |
| M116NWR4 R0 | IVO | 11.6 | 1366×768 |
| M116NWR6 R0 | IVO | 11.6 | 1366×768 |
| B154EW09 V1 | AUO | 15.4 | 1280×800 |
| B201SW01 V0 | AUO | 20.1 | 1680×1050 |
| LP140WH1-TLC6 | LG Display | 14.0 | 1366×768 |
| LP141XA-A1 | LG Display | 14.1 | 1024×768 |
| LP156WH2-TLA1 | LG Display | 15.6 | 1366×768 |
| LP156WH3-TLSA | LG Display | 15.6 | 1366×768 |
| LP171WP7-TLB1 | LG Display | 17.1 | 1440×900 |
| LTN133AT03-001 | Samsung | 13.3 | 1280×800 |
| M116NWR1 R7 | IVO | 11.6 | 1366×768 |
| N156HGE-LG1 | Innolux | 15.6 | 1920×1080 |
