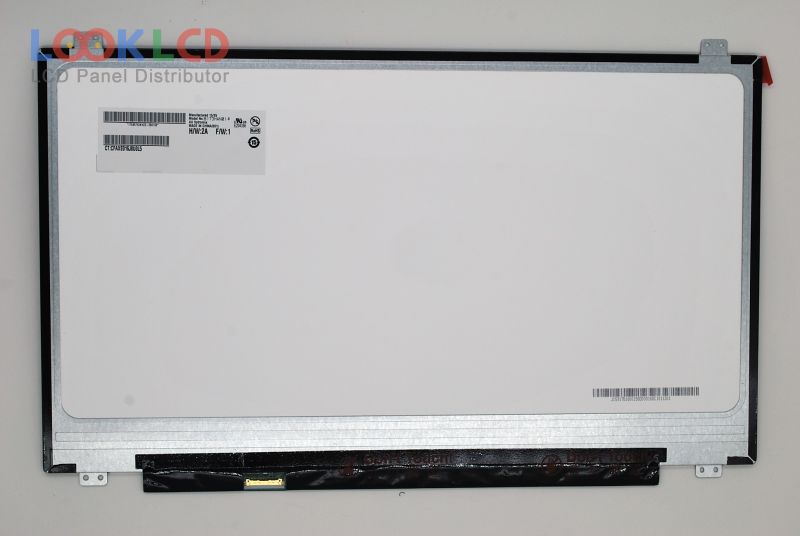

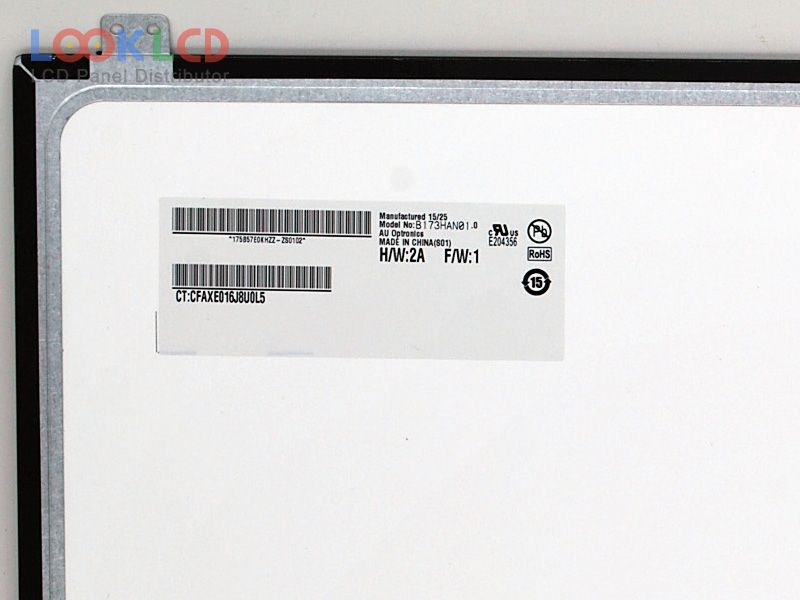

| Part Number | B173HAN01.0 |
| Mark | AUO |
| Gréisst | 17.3 |
| Applikatioun | NBPC |
| Opléisung | 1920×1080 |
| Zesummesetzung | LCM |
| Hellegkeet | 300 |
| CR | 700:1 |
| Faarwen | 16.2M |
| Géigeliicht | WLED |
| Interface | eDP |
| Panel Mark | AUO |
| Panel Modell | B173HAN01.0 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 17.3 inch |
| Resolutioun | 1920(RGB)×1080 , FHD |
| Display Modus | AHVA, Normally Black, Transmissive |
| aktiv Beräich | 381.888×214.812 mm |
| skizzéieren | 398.1×250.5×4 mm |
| Form Stil | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| Uewerfläch | Antiglare, Hard coating (3H) |
| Hellegkeet | 300 cd/m² (Typ.) |
| Kontrast Verhältnis | 700:1 (Typ.) |
| weisen Faarwen | 16.2M (6-bit + FRC), CIE193172% |
| Äntwert Zäit | 25 (Typ.)(Tr+Td) |
| Vue Wénkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | WLEDEmbedded (LED Driver) |
| Signal Interface | eDP (2 Lanes), 30 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | NBPC |
