| Part Number | B173HTN01.1 |
| Mark | AUO |
| Gréisst | 17.3 |
| Applikatioun | NBPC |
| Opléisung | 1920×1080 |
| Zesummesetzung | LCM |
| Hellegkeet | 300 |
| CR | 600:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | eDP |
| Panel Mark | AUO |
| Panel Modell | B173HTN01.1 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 17.3 inch |
| Resolutioun | 1920(RGB)×1080 , FHD |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 381.888×214.812 mm |
| skizzéieren | 398.1×233.3×6 mm |
| Form Stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Uewerfläch | Antiglare, Hard coating (3H), Reflection 4.3% (Typ.) |
| Hellegkeet | 300 cd/m² (Typ.) |
| Kontrast Verhältnis | 600:1 (Typ.) |
| weisen Faarwen | 262K (6-bit), CIE193172% |
| Äntwert Zäit | 8 (Typ.)(Tr+Td) |
| Vue Wénkel | 70/70/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | WLEDEmbedded (LED Driver) |

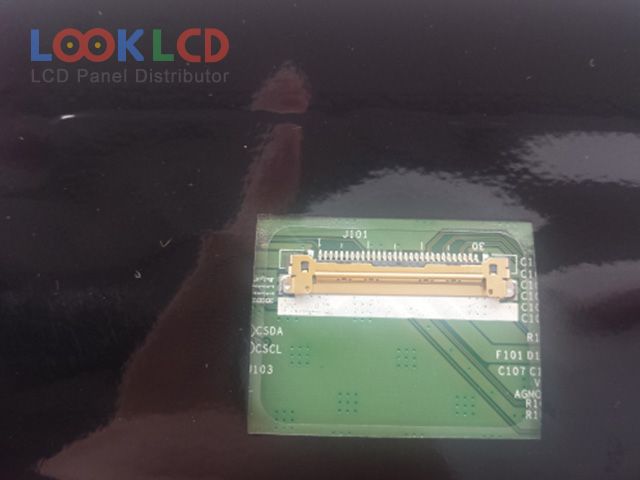

| Signal Interface | eDP (2 Lanes), 30 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | NBPC |
