| Part Number | B173HW01 V4 |
| Mark | AUO |
| Gréisst | 17.3 |
| Applikatioun | NBPC |
| Opléisung | 1920×1080 |
| Zesummesetzung | LCM |
| Hellegkeet | 300 |
| CR | 600:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | LVDS |
| Panel Mark | AUO |
| Panel Modell | B173HW01 V4 5 Compatible model |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 17.3 inch |
| Resolutioun | 1920(RGB)×1080 , FHD |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 381.888×214.812 mm |
| skizzéieren | 398.1×232.8×6 mm |
| Form Stil | Wedge (PCBA Bent, Depth ≥5.2mm) |

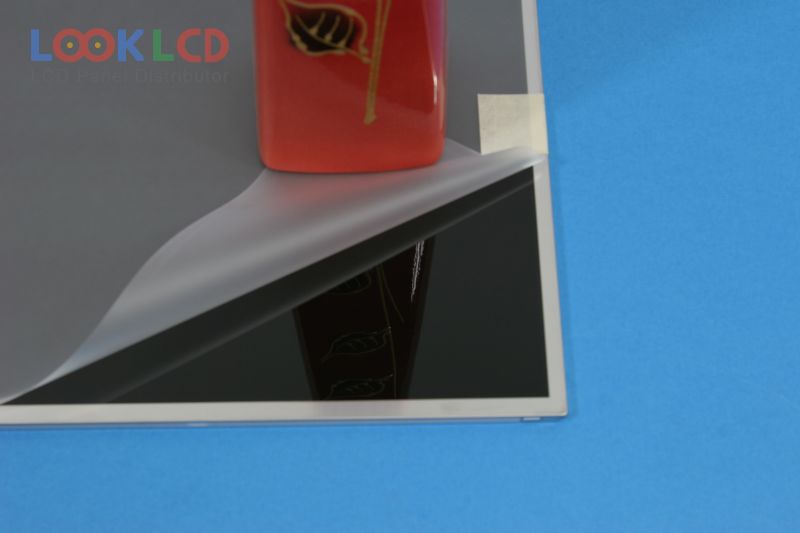

| Uewerfläch | Glare (Haze 0%), Hard coating (4H) |
| Hellegkeet | 300 cd/m² (Typ.) |
| Kontrast Verhältnis | 600:1 (Typ.) |
| weisen Faarwen | 262K (6-bit), CIE193190% |
| Äntwert Zäit | 8 (Typ.)(Tr+Td) |
| Vue Wénkel | 70/70/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | WLEDEmbedded (LED Driver) |
| Signal Interface | LVDS (2 ch, 6-bit), 40 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | NBPC |
| B173HAN01.0 | AUO | 17.3 | 1920×1080 |
| B173HTN01.1 | AUO | 17.3 | 1920×1080 |
| B173HW01 V4 | AUO | 17.3 | 1920×1080 |
| B173HW01 V5 | AUO | 17.3 | 1920×1080 |
| B173HW02 V1 | AUO | 17.3 | 1920×1080 |
| B173RW01 V0 | AUO | 17.3 | 1600×900 |
| G173HW01 V0 | AUO | 17.3 | 1920×1080 |
| LP173WD1-TLN1 | LG Display | 17.3 | 1600×900 |
| LP173WD1-TLN2 | LG Display | 17.3 | 1600×900 |
| N173HCE-E31 | Innolux | 17.3 | 1920×1080 |
| B140XTN01.3 | AUO | 14.0 | 1366×768 |
| B156RW01 V0 | AUO | 15.6 | 1600×900 |
| LP140WF6-SPB3 | LG Display | 14.0 | 1920×1080 |
| LP140WH1-TLE3 | LG Display | 14.0 | 1366×768 |
| LP141WX5-TLP2 | LG Display | 14.1 | 1280×800 |
| LP156WH3-TLE1 | LG Display | 15.6 | 1366×768 |
| LTN141XB-L04 | Samsung | 14.1 | 1024×768 |
| LTN154BT05-D01 | Samsung | 15.4 | 1440×900 |
| LTN156AT01-B01 | Samsung | 15.6 | 1366×768 |
| NV133FHM-N43 | BOE | 13.3 | 1920×1080 |
