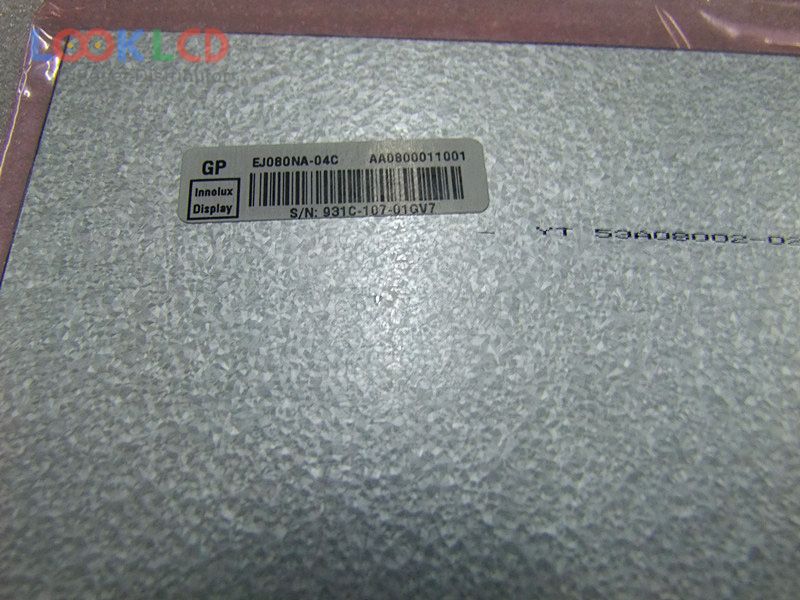

| Part Number | EJ080NA-04C |
| Mark | Innolux |
| Gréisst | 8.0 |
| Applikatioun | DPF |
| Opléisung | 1024×768 |
| Zesummesetzung | LCM |
| Hellegkeet | 250 |
| CR | 700:1 |
| Faarwen | 262K/16.7M |
| Géigeliicht | WLED |
| Interface | LVDS |
| Panel Mark | CHIMEI INNOLUX |
| Panel Modell | EJ080NA-04C |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 8.0 inch |
| Resolutioun | 1024(RGB)×768 , XGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 162.048×121.536 mm |
| skizzéieren | 183×141 mm |
| Uewerfläch | Hard coating |
| Hellegkeet | 250 cd/m² (Typ.) |
| Kontrast Verhältnis | 700:1 (Typ.) |
| weisen Faarwen | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193150% |
| Äntwert Zäit | 6/14 (Typ.)(Tr/Td) |
| Vue Wénkel | 75/75/75/75 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | WLEDWithout Driver |
| Signal Interface | LVDS (1 ch, 6/8-bit), 40 pins |
| Input Volt | 3.3/11.5/22/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
| Applikatioun | DPF |
