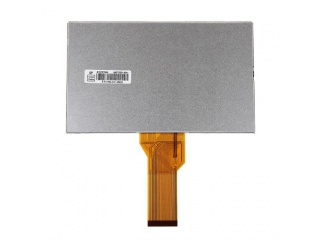

| Part Number | AT070TN04 |
| Mark | Innolux |
| Gréisst | 7.0 |
| Applikatioun | Automotive Display |
| Opléisung | 480×234 |
| Zesummesetzung | a-Si TFT-LCD , LCM |
| Hellegkeet | |
| CR | 300:1 |
| Faarwen | Full |
| Géigeliicht | CCFL |
| Interface | TFT |
| Mark | Innolux |
| diagonal Gréisst | 7.0 inch |
| Pixel Format | 480(RGB)×234 76PPI |
| aktiv Beräich | 154.08(H)×86.58(V) mm |
| bezel Beräich | - |
| luminance | 500 cd/m² (Typ.) |
| Vue Richtung | 6 o'clock |
| Vue Wénkel | 60/60/40/60 (Typ.)(CR≥10) |
| Ënnerstëtzung Faarf | Full color |
| Gewiicht | 160g (Typ.) |
| Frame Taux | 60Hz |
| Interface Typ | TFT Specific Analog RGB , 26 pins FPC |
| Stroumversuergung | 5.0/5.0/15.0/-10.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| Ëmwelt | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| Modell | AT070TN04 |
| Typ | a-Si TFT-LCD , LCM |
| Configuratioun | RGB Vertical Stripe |
| kontur dim. | 164.9(H)×100(V) ×6(D) mm |
| Behandlung | Antiglare |
| Kontrast Verhältnis | 300:1 (Typ.) (TM) |
| Äntwert Zäit | 10/20 (Typ.)(Tr/Td) |
| Betribssystemer Modus | TN, Normally White, Transmissive |
| Liichtquell | CCFL [1 pcs] , 10K hours , W/O Driver |
| entworf fir | Automotive Display |
| Touch Panel | Without |
