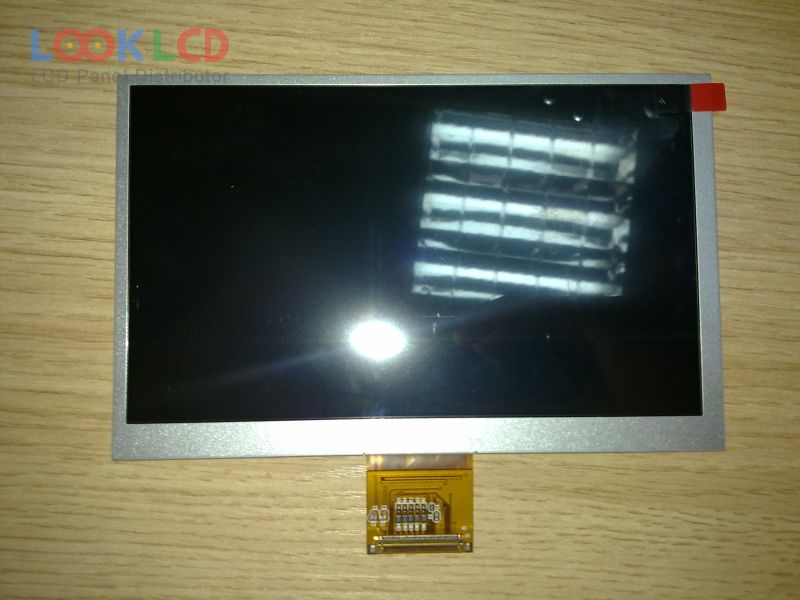

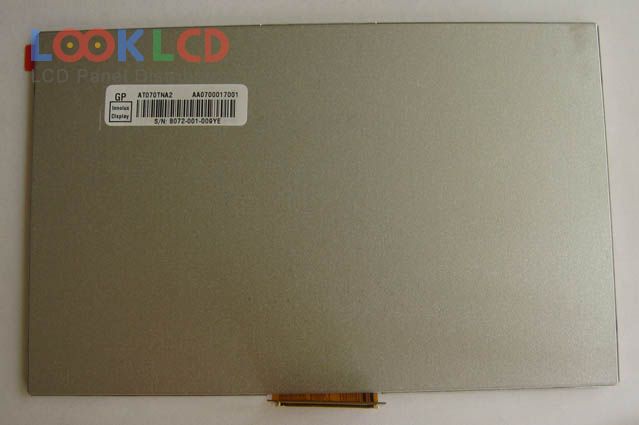

| Part Number | AT070TNA2 |
| Mark | Innolux |
| Gréisst | 7.0 |
| Applikatioun | MP4 |
| Opléisung | 1024×600 |
| Zesummesetzung | LCM |
| Hellegkeet | 250 |
| CR | 700:1 |
| Faarwen | 262K/16.7M |
| Géigeliicht | WLED |
| Interface | LVDS |
| Panel Mark | CHIMEI INNOLUX |
| Panel Modell | AT070TNA2 1 Compatible model |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 7.0 inch |
| Resolutioun | 1024(RGB)×600 , WSVGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 153.6×90 mm |
| skizzéieren | 165.75×105.39×3.7 mm |
| Uewerfläch | Antiglare |
| Hellegkeet | 250 cd/m² (Typ.) |
| Kontrast Verhältnis | 700:1 (Typ.) |
| weisen Faarwen | 262K/16.7M (6-bit / 6-bit + Dithering) |
| Äntwert Zäit | 10/10 (Typ.)(Tr/Td) |
| Vue Wénkel | 75/75/70/75 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 3S6PWLEDWithout Driver |

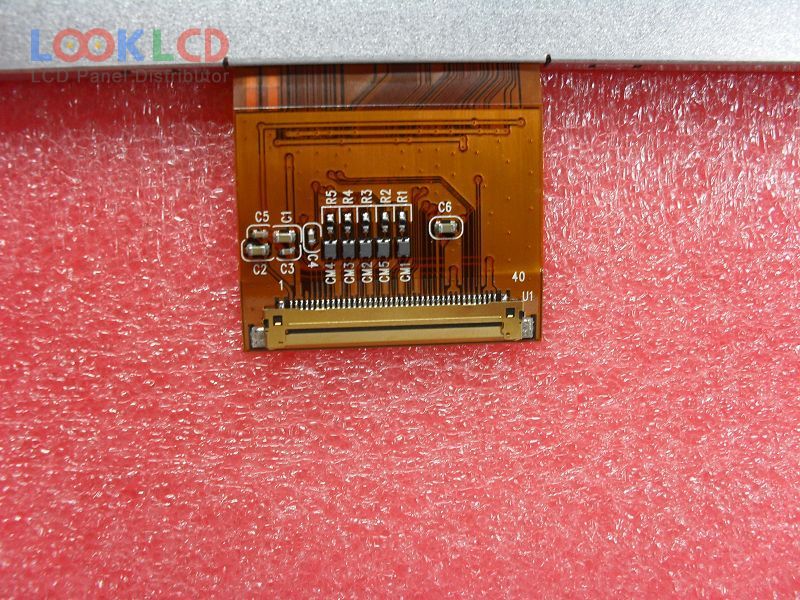

| Signal Interface | LVDS (1 ch, 8-bit), 40 pins |
| Input Volt | 3.3/11/20/-6.8V (Typ.)(DVDD/AVDD/VGH/VGL) |
| Applikatioun | MP4 |
| AT070TN07 V.A | Innolux | 7.0 | 480×234 |
| AT070TN82 | Innolux | 7.0 | 800×480 |
| AT070TN82 V.1 | Innolux | 7.0 | 800×480 |
| AT070TN83 TP | Innolux | 7.0 | 800×480 |
| AT070TN84 V.1 | Innolux | 7.0 | 800×480 |
| AT070TN90 | Innolux | 7.0 | 800×480 |
| AT070TN92 V.1 | Innolux | 7.0 | 800×480 |
| AT070TN92 V.1 TP | Innolux | 7.0 | 800×480 |
| AT070TN92 V.4 | Innolux | 7.0 | 800×480 |
| AT070TNA2 | Innolux | 7.0 | 1024×600 |
| AT070TN93 V.2 | Innolux | 7.0 | 800×480 |
| CLAA070ND26CW | CPT | 7.0 | 1024×600 |
| DLC0700MIG | Other | 7.0 | 800×480 |
| LMS430HF11-003 | Samsung | 4.3 | 480×272 |
| LMS700KF07 | Samsung | 7.0 | 800×480 |
| LMS700KF15 | Samsung | 7.0 | 800×480 |
| LQ043T3DX03 | SHARP | 4.3 | 480×272 |
| LW700AT9008 | Innolux | 7.0 | 800×480 |
| LW700AT9009 | Innolux | 7.0 | 800×480 |
| Q070LRE-L81 | Innolux | 7.0 | 1024×600 |
