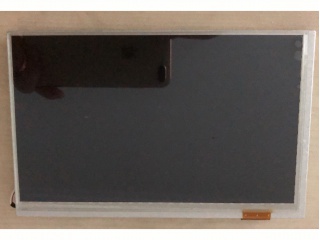

| Part Number | AM-1024600K7TMQW-T19H |
| Mark | AMPIRE |
| Gréisst | 7.0 |
| Applikatioun | Industrial |
| Opléisung | 1024×600 |
| Zesummesetzung | a-Si TFT-LCD , LCM |
| Hellegkeet | |
| CR | 700:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | |
| Mark | AMPIRE |
| diagonal Gréisst | 7.0 inch |
| Pixel Format | 1024(RGB)×600 [WSVGA] 169PPI |
| aktiv Beräich | 153.6(H)×90(V) mm |
| luminance | 425 cd/m² (Typ.) |
| Vue Richtung | 6 o'clock |
| Vue Wénkel | 75/75/70/75 (Typ.)(CR≥10) |
| Ënnerstëtzung Faarf | 16.7M |
| Gewiicht | TBD |
| Frame Taux | 60Hz |
| Modell | AM-1024600K7TMQW-T19H |
| Typ | a-Si TFT-LCD , LCM |
| Configuratioun | RGB Vertical Stripe |
| kontur dim. | 165.5(H)×104.44(V) ×10.81(D) mm |
| Kontrast Verhältnis | 700:1 (Typ.) (TM) |
| Äntwert Zäit | 20/20 (Typ.)(Tr/Td) |
| Betribssystemer Modus | TN, Normally White, Transmissive |
| Liichtquell | WLED [5S3P] , 30K hours , With LED Driver |
| entworf fir | Industrial |
| Touch Panel | PCAP |
