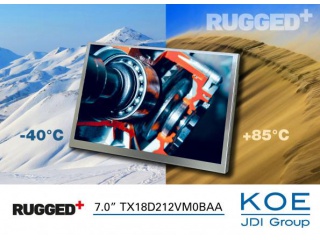

| Part Number | TX18D212VM0BAA |
| Mark | KOE |
| Gréisst | 7.0 |
| Applikatioun | Industrial Outdoor H |
| Opléisung | 1280×768 |
| Zesummesetzung | a-Si TFT-LCD , LCM |
| Hellegkeet | |
| CR | 1000:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | |
| Mark | KOE |
| diagonal Gréisst | 7.0 inch |
| Pixel Format | 1280(RGB)×768 [WXGA] 213PPI |
| aktiv Beräich | 152.448(H)×91.4688(V) mm |
| bezel Beräich | 154.5(H)×93.5(V) mm |
| luminance | 1000 cd/m² (Typ.) |
| Vue Richtung | Symmetry |
| Vue Wénkel | 85/85/85/85 (Typ.)(CR≥10) |
| Ënnerstëtzung Faarf | 16.7M 72% NTSC |
| Gewiicht | 212g (Typ.) |
| Frame Taux | 60Hz |
| Modell | TX18D212VM0BAA |
| Typ | a-Si TFT-LCD , LCM |
| Configuratioun | RGB Vertical Stripe |
| kontur dim. | 164.4(H)×105(V) ×13.5(D) mm |
| Behandlung | - |
| Kontrast Verhältnis | 1000:1 (Typ.) (TM) |
| Äntwert Zäit | 25 (Max.)(Tr+Tf) |
| Betribssystemer Modus | IPS, Normally Black, Transmissive |
| Liichtquell | WLED , 50K hours , With LED Driver |
| entworf fir | Industrial Outdoor High Brightness |
| Touch Panel | Without |
| AA070ME01-DA1 | Mitsubishi | 7.0 | 800×480 |
| BP070WSA-400 | BOE | 7.0 | 1024×600 |
| EJ070NA-01J | Innolux | 7.0 | 1024×600 |
| G070VW01 V1 | AUO | 7.0 | 800×480 |
| HE070IA-04F | Innolux | 7.0 | 800×1280 |
| LB070WV4-TJ01 | LG Display | 7.0 | 800×480 |
| LMS700KF07 | Samsung | 7.0 | 800×480 |
| LQ7BW566AH | SHARP | 7.0 | 480×234 |
| LTP700WV-F01 | Samsung | 7.0 | 800×480 |
| VVX07H005A90 | Panasonic | 7.0 | 800×1280 |
