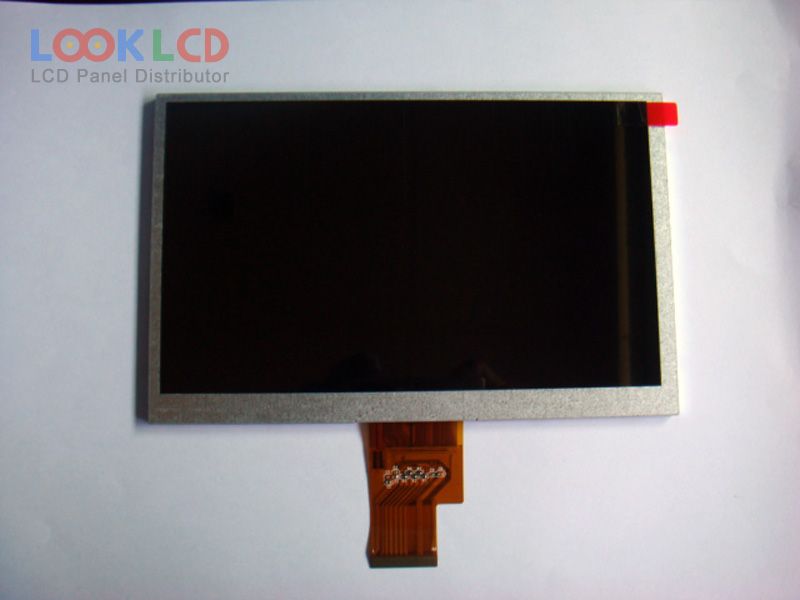

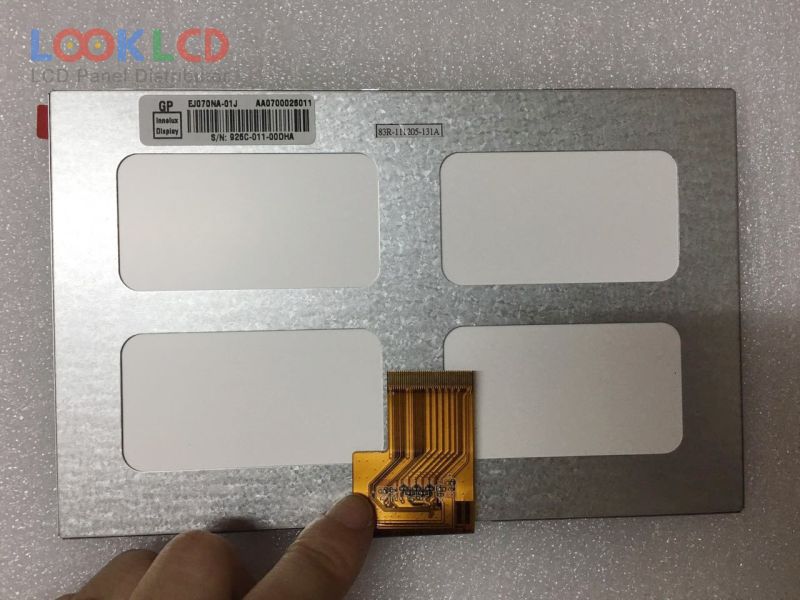

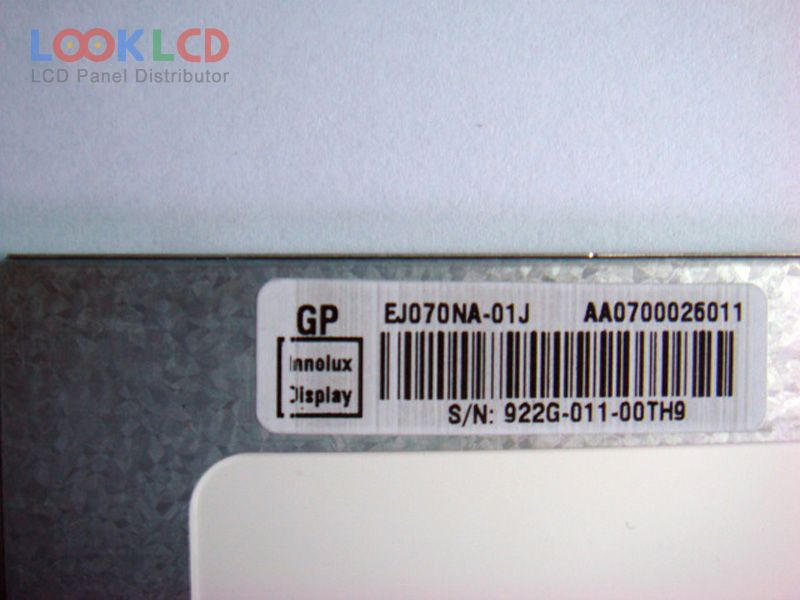

| Part Number | EJ070NA-01J |
| Mark | Innolux |
| Gréisst | 7.0 |
| Applikatioun | MP4 |
| Opléisung | 1024×600 |
| Zesummesetzung | LCM |
| Hellegkeet | 250 |
| CR | 700:1 |
| Faarwen | 262K/16.7M |
| Géigeliicht | WLED |
| Interface | LVDS |
| Panel Mark | CHIMEI INNOLUX |
| Panel Modell | EJ070NA-01J 4 Compatible model |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 7.0 inch |
| Resolutioun | 1024(RGB)×600 , WSVGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 153.6×90 mm |
| skizzéieren | 165.75×105.39×3.7 mm |
| Uewerfläch | Glare (Haze 0%), Hard coating |
| Hellegkeet | 250 cd/m² (Typ.) |
| Kontrast Verhältnis | 700:1 (Typ.) |
| weisen Faarwen | 262K/16.7M (6-bit / 6-bit + Dithering), CIE193170% |
| Äntwert Zäit | 10/15 (Typ.)(Tr/Td) |
| Vue Wénkel | 75/75/70/75 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 3S8PWLEDWithout Driver |
| Signal Interface | LVDS (1 ch, 6/8-bit), 40 pins |
| Input Volt | 3.3/11/20/-6.8V (Typ.)(DVDD/AVDD/VGH/VGL) |
| Applikatioun | MP4 |
| A065VL01 V2 | AUO | 6.5 | 800×480 |
| A070VW04 V3 | AUO | 7.0 | 800×480 |
| CLAA070ND23CW | CPT | 7.0 | 1024×600 |
| CLAA089NA0FCW | CPT | 8.9 | 1024×600 |
| HJ070NA-01U | Innolux | 7.0 | 1024×600 |
| LB070WV4-SD01 | LG Display | 7.0 | 800×480 |
| LMS700JF04-0 | Samsung | 7.0 | 1024×600 |
| TM070DDH01 | Tianma | 7.0 | 1024×600 |
| TM070DDH07 | Tianma | 7.0 | 1024×600 |
| TM070RBH10 | Tianma | 7.0 | 800×480 |
