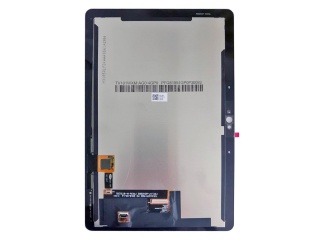

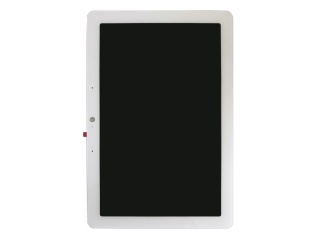

| Part Number | TV101WXM-AG0 |
| Mark | BOE |
| Gréisst | 10.1 |
| Applikatioun | Pad & Tablet |
| Opléisung | 800×1280 |
| Zesummesetzung | Assembly , a-Si TF |
| Hellegkeet | |
| CR | 1000:1 |
| Faarwen | 16.7M |
| Géigeliicht | 6S6P WLED , 15K hours , No Driver |
| Interface | MIPI |
| Fabrikant beschwéiert | BOE |
| Modell Numm | TV101WXM-AG0 |
| Écran Gréisst | 10.1 inch |
| Écran Typ | Assembly , a-Si TFT-LCD |
| Pixel Zuel | 800(RGB)×1280 (WXGA) 150PPI |
| Arrangement | RGB Vertical Stripe |
| aktiv Beräich (mm) | 135.322 × 216.463 (H×V) |
| Kontur (mm) | 164 × 245.2 (H×V×D) |
| Bezel Beräich (mm) | - |
| Behandlung | Anti Fingerprint, Hard coating (7H) |
| luminance | 400 cd/m² (Typ.) |
| Kontrast Verhältnis | 1000 : 1 (Typ.) (TM) |
| Vue Wénkel | 85/85/85/85 (Typ.)(CR≥10) |
| Äntwert | 30 (Typ.)(Tr+Td) ms |
| gutt Vue op | Symmetry |
| Aarbecht Modus | - |
| Faarfdéift | 16.7M 57% NTSC |
| mass | 300g (Max.) |
| benotzt fir | Pad & Tablet |
| Erfrëschungsrate | 60Hz |
| touchscreen | PCAP |
| Signal Typ | MIPI (4 data lanes) , 51 pins Connector |
| Spannungsversuergung | 3.3/5.5/-5.5V (Typ.)(VDDIO/AVDD/AVEE) |
| max. Bewäertungen | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
